12-4690

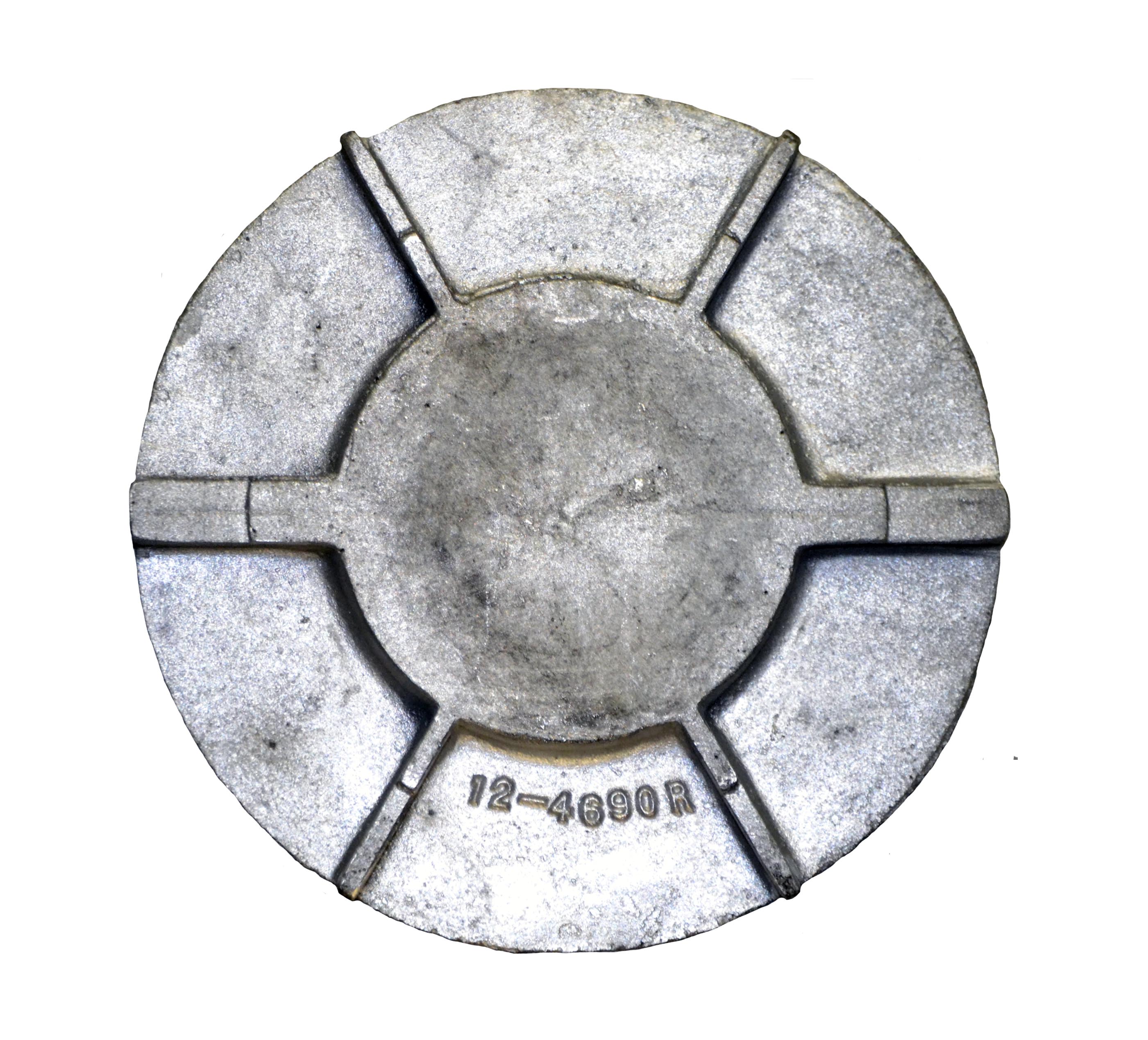

9″ OD Fan
Series 12 Split Bolt/Clamp Fans typically come as one piece, which can be split and bolted to a machine shaft or clamped together. These fans can also be used as a heat slinger.
- 0” hub recess
- 6 blades
- 4.25” max bore allowed
$206.46
Overview
Cast in Aluminum, this Series 12 9″ Split Bolt/Clamp Fan is used when it’s necessary to remove the fan from a shaft joining two parts of a machine that’s difficult to disassemble. Each fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions.
Specs
Series 12 fans typically come as one piece, which can be split and bolted to a machine shaft or clamped together. This type of fan is useful if it is necessary to remove the fan from a shaft joining two parts of a machine that is difficult to disassemble. The list price includes all pieces required to assemble a complete fan, but does not include charges to bore and machine the split surfaces of the fan.
- Blade Height (A) - in.
- 0.875
- Hub Diameter (B) - in.
- 4.75
- Hub Thickness (C) - in.
- 0.75
- Overall Diameter (D) - in.
- 9
- Hub Recess (E) - in.
- 0
- Plate Diameter (H) - in.
- 9
- Max Bore Allowed - in.
- 4.25
- Number of Blades
- 6
- Material
- Aluminum
- Weight - lbs
- 2.45
