Part #
1-710M

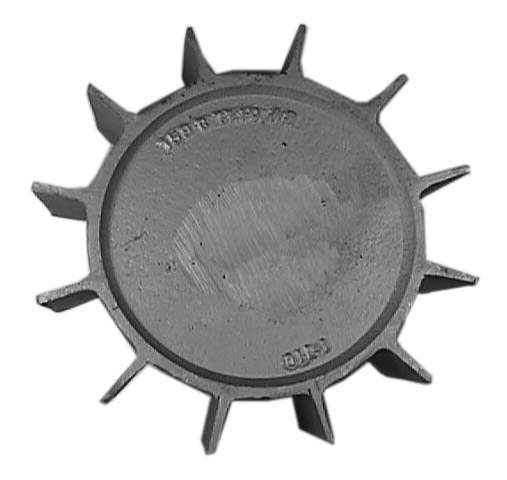

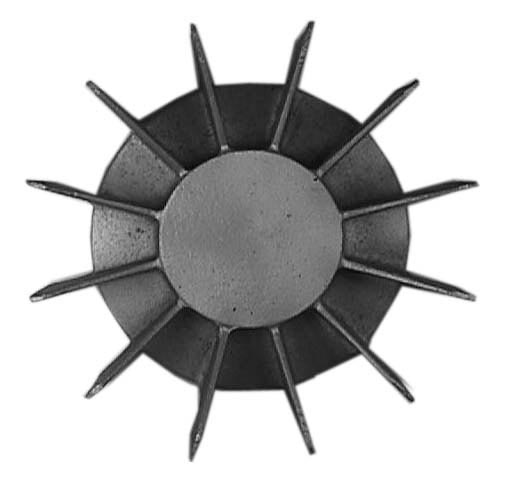

9-5/16″ OD Fan
Our recommended Jenkins OEM replacement fan has been cast in aluminum and machined to match original specifications.
- replaces General Electric Motors – Energy Saver Design GE-7100AA1
- 9-5/16″ overall diameter
- 12 blades
$638.85
Specs
- Hub Recess (E) - in.
- 0.25
- Replaces OEM Fan
- GE-7100AA1
- Blade Height (A) - in.
- 3.75
- Hub Diameter (B) - in.
- 4
- Hub Thickness (C) - in.
- 1.875
- Overall Diameter (D) - in.
- 9.3125
- Plate Diameter (H) - in.
- 7.5
- Bore Diameter - mm.
- 63.5
- Bore Diameter - in.
- 2.500"
- Keyway Size - in.
- 1/4" x 5/32"
- Number of Blades
- 12
- Material
- Aluminum
- Weight - lbs
- 5.45
- Balance Included
- No
