Part #
1-7761MA

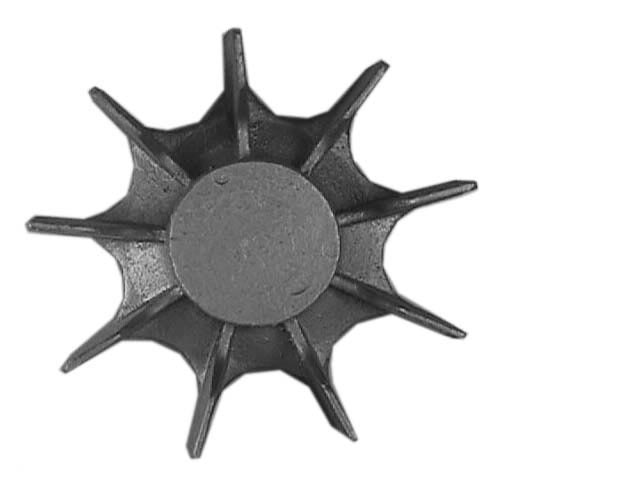

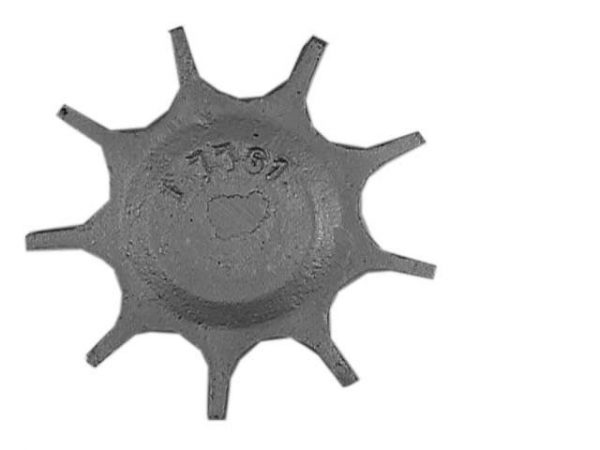

4-7/8″ OD Fan
Our recommended Jenkins OEM replacement fan has been cast in aluminum and machined to match original specifications.
- replaces Reliance Motors R-664-3A
- 4-7/8″ overall diameter
- 9 blades
$247.33
Specs
- Hub Recess (E) - in.
- 0.25
- Replaces OEM Fan
- R-664-3A
- Blade Height (A) - in.
- 1.5
- Hub Diameter (B) - in.
- 1.75
- Hub Thickness (C) - in.
- 1.125
- Overall Diameter (D) - in.
- 4.875
- Plate Diameter (H) - in.
- 3
- Bore Diameter - mm.
- 23.8252
- Bore Diameter - in.
- 0.938"
- Keyway Size - in.
- 1/4" x 1/8"
- Number of Blades
- 9
- Material
- Aluminum
- Weight - lbs
- 0.5
- Balance Included
- No
