18-1043
4-1/2″ OD Fan

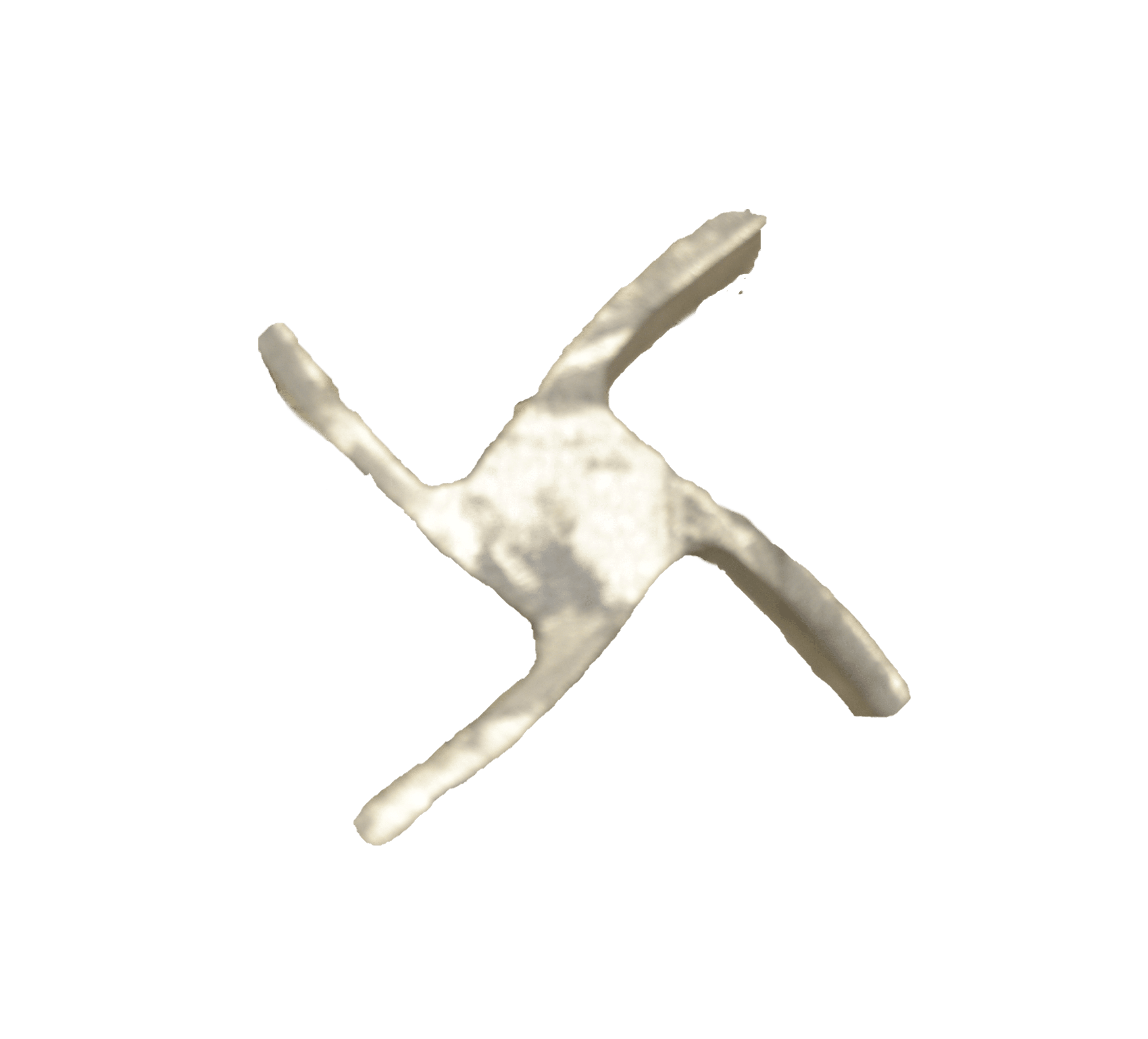

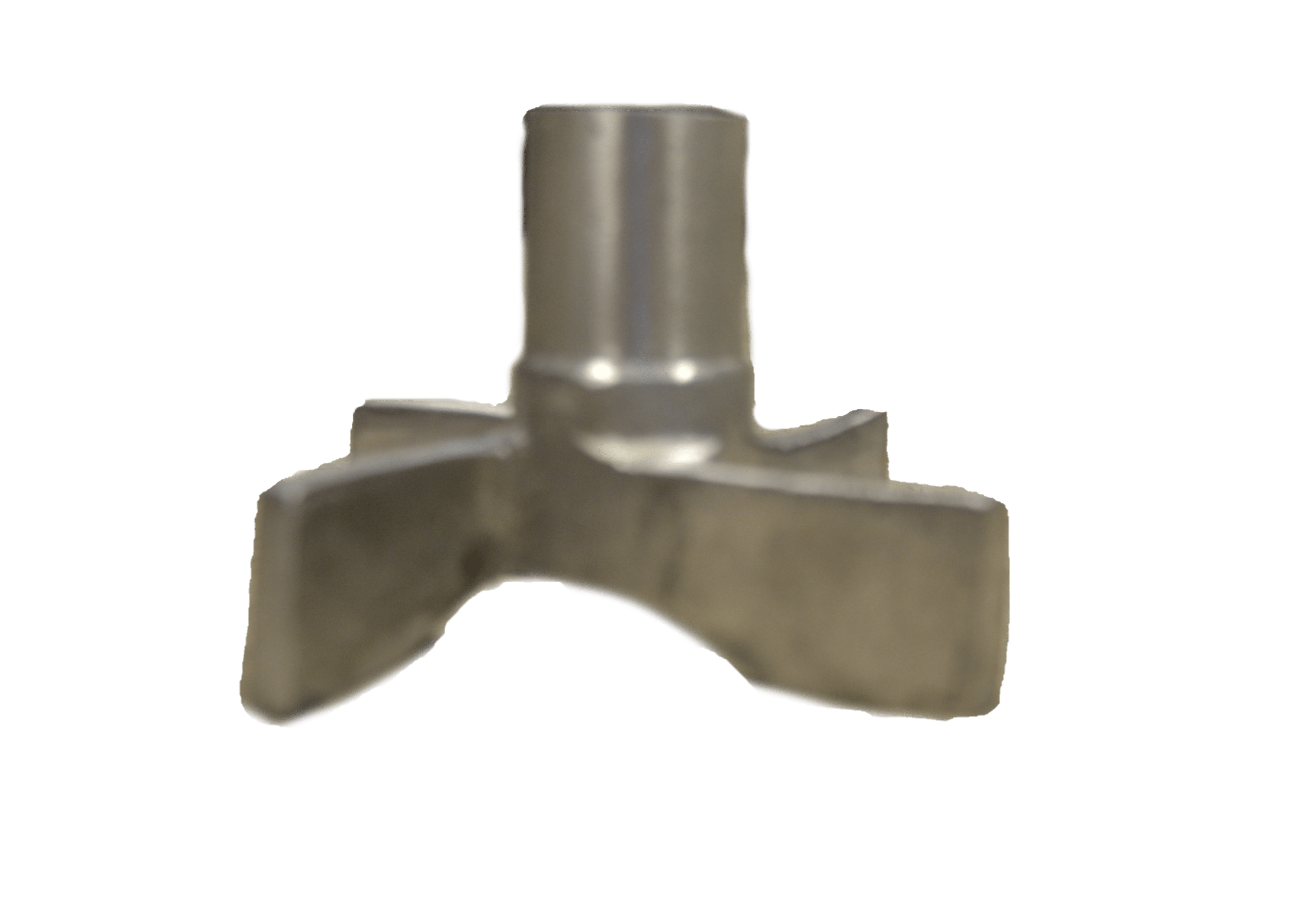

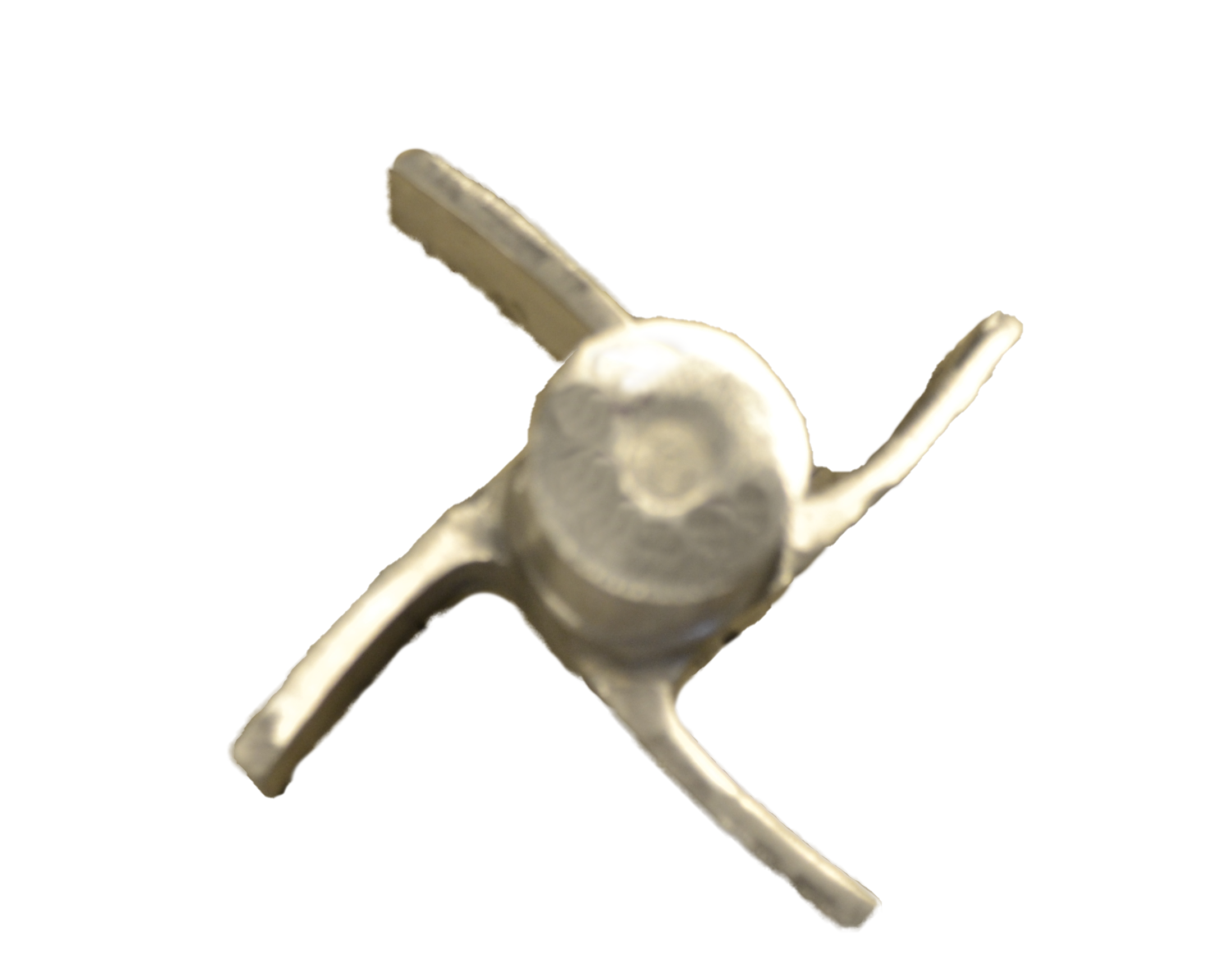

Series 18 Directional Radial Fans blow air out from the shaft. The blades are angled, curved or shaped to operate in one specific direction, clockwise (CW).
- 0.375” hub recess
- 4 blades
- 0.625” max bore allowed
$149.52
Overview
Cast in Aluminum, this Series 18 4-1/2″ Directional Radial Fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. Some models can also be removed from the shart, turned around and reinstalled for reverse operation. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions.
Specs
Series 18 fans are designed to blow air out from the shaft (radial flow). The blades are angled, curved or shaped to operate in one specific direction. This fan is clockwise.
- Direction of Rotation
- CW
- Blade Height (A) - in.
- 1
- Hub Diameter (B) - in.
- 1.125
- Hub Thickness (C) - in.
- 2.375
- Overall Diameter (D) - in.
- 4.5
- Hub Recess (E) - in.
- 0.375
- Plate Diameter (H) - in.
- 1.3125
- Max Bore Allowed - in.
- 0.625
- Number of Blades
- 4
- Material
- Aluminum
- Weight - lbs
- 0.45
