Part #
1-4471

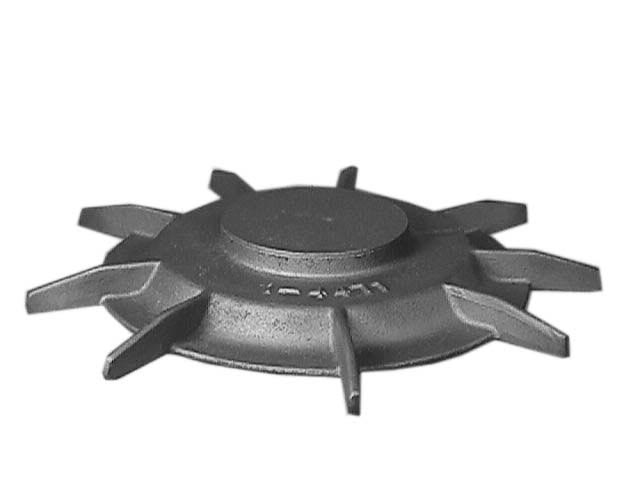

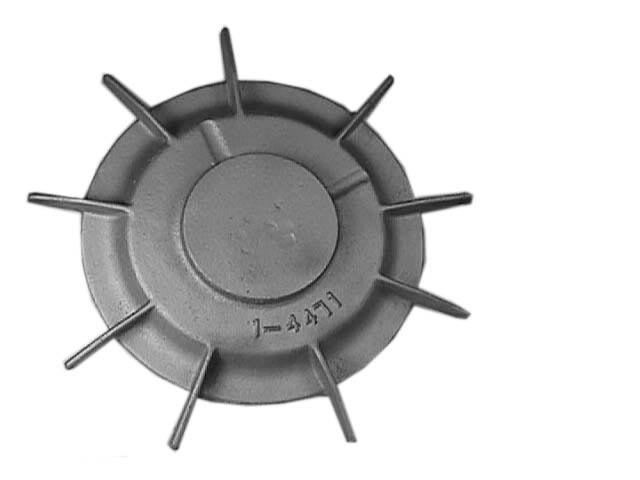

16-1/8″ OD Fan
Series 1 Shallow Recess Fans are typically used on horizontal TEFC induction motors. First developed to fit U-frame GE motors, these patterns were then modified slightly to fit other manufacturers’ motors.
- 0” hub recess
- 9 blades
- 4.75” max bore allowed
$754.29
Overview
Cast in aluminum, this Series 1 16-1/8″ Shallow Recess Fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions.
Specs
Series 1 fans are used most often on horizontal TEFC induction motors. This fan has a small hub recess (E dimension).
- Blade Height (A) - in.
- 1.1875
- Hub Diameter (B) - in.
- 5.25
- Hub Thickness (C) - in.
- 1.875
- Overall Diameter (D) - in.
- 16.125
- Hub Recess (E) - in.
- 0
- Plate Diameter (H) - in.
- 12.25
- Max Bore Allowed - in.
- 4.75
- Number of Blades
- 9
- Material
- Aluminum
- Typical Frame
- 5809L
- Weight - lbs
- 9
