1-5099

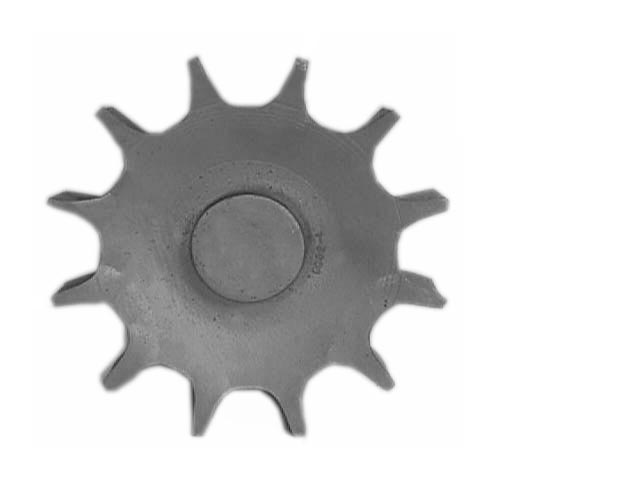

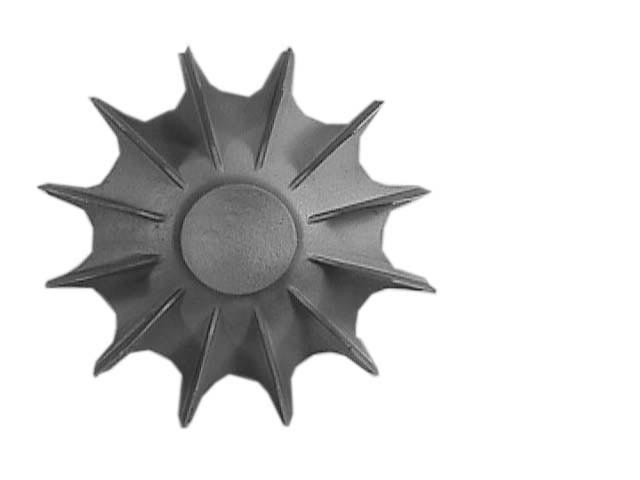

14″ OD Fan
Series 1 Shallow Recess Fans are typically used on horizontal TEFC induction motors. First developed to fit U-frame GE motors, these patterns were then modified slightly to fit other manufacturers’ motors.
- 0.875” hub recess
- 12 blades
- 3.375” max bore allowed
$453.98
Overview
Cast in aluminum, this Series 1 14″ Shallow Recess Fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions.
Specs
Series 1 fans are used most often on horizontal TEFC induction motors. This fan has a small hub recess (E dimension).
- Blade Height (A) - in.
- 3.25
- Hub Diameter (B) - in.
- 3.875
- Hub Thickness (C) - in.
- 2
- Overall Diameter (D) - in.
- 14
- Hub Recess (E) - in.
- 0.875
- Plate Diameter (H) - in.
- 10.75
- Max Bore Allowed - in.
- 3.375
- Number of Blades
- 12
- Material
- Aluminum
- Weight - lbs
- 5.4
