Part #
10-4915

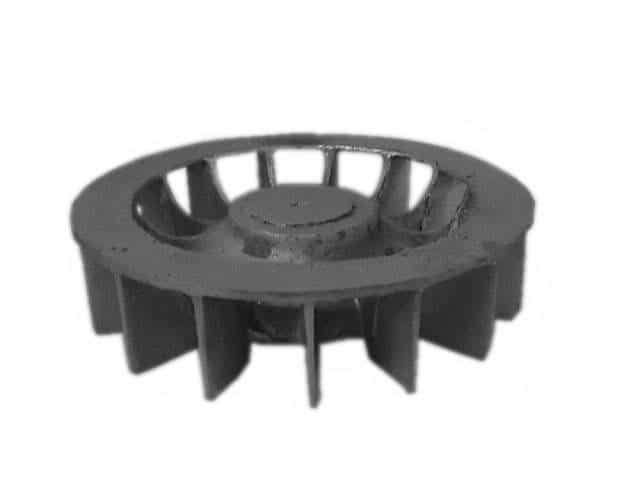

13-3/4″ OD Fan
Series 10 DC/Armature fans are used inside DC motors opposite the commutator end. There’s traditionally a deep recess for the bearing housing with the outside of the hub tapered to fit under the coil ends.
- 1.875” hub recess
- 15 blades
- 4” max bore allowed
$651.06
Overview
Cast in aluminum, this Series 10 13-3/4″ DC/Armature Fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. A rim can be cast around the tips of the blades, as well. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions or rim casting request if desired.
Specs
Series 10 fans are used inside a DC motor opposite the commutator end. Air is drawn across the armature and blown out of the motor. There is usually a deep recess for the bearing housing, and the outside of the hub is tapered to fit under the coil ends.
- Blade Height (A) - in.
- 3.75
- Hub Diameter (B) - in.
- 4.5
- Hub Thickness (C) - in.
- 1.375
- Overall Diameter (D) - in.
- 13.75
- Hub Recess (E) - in.
- 1.875
- Plate Diameter (H) - in.
- 8.75
- Max Bore Allowed - in.
- 4
- Number of Blades
- 15
- Material
- Aluminum
- Weight - lbs
- 7.75
