Part #
10-6433

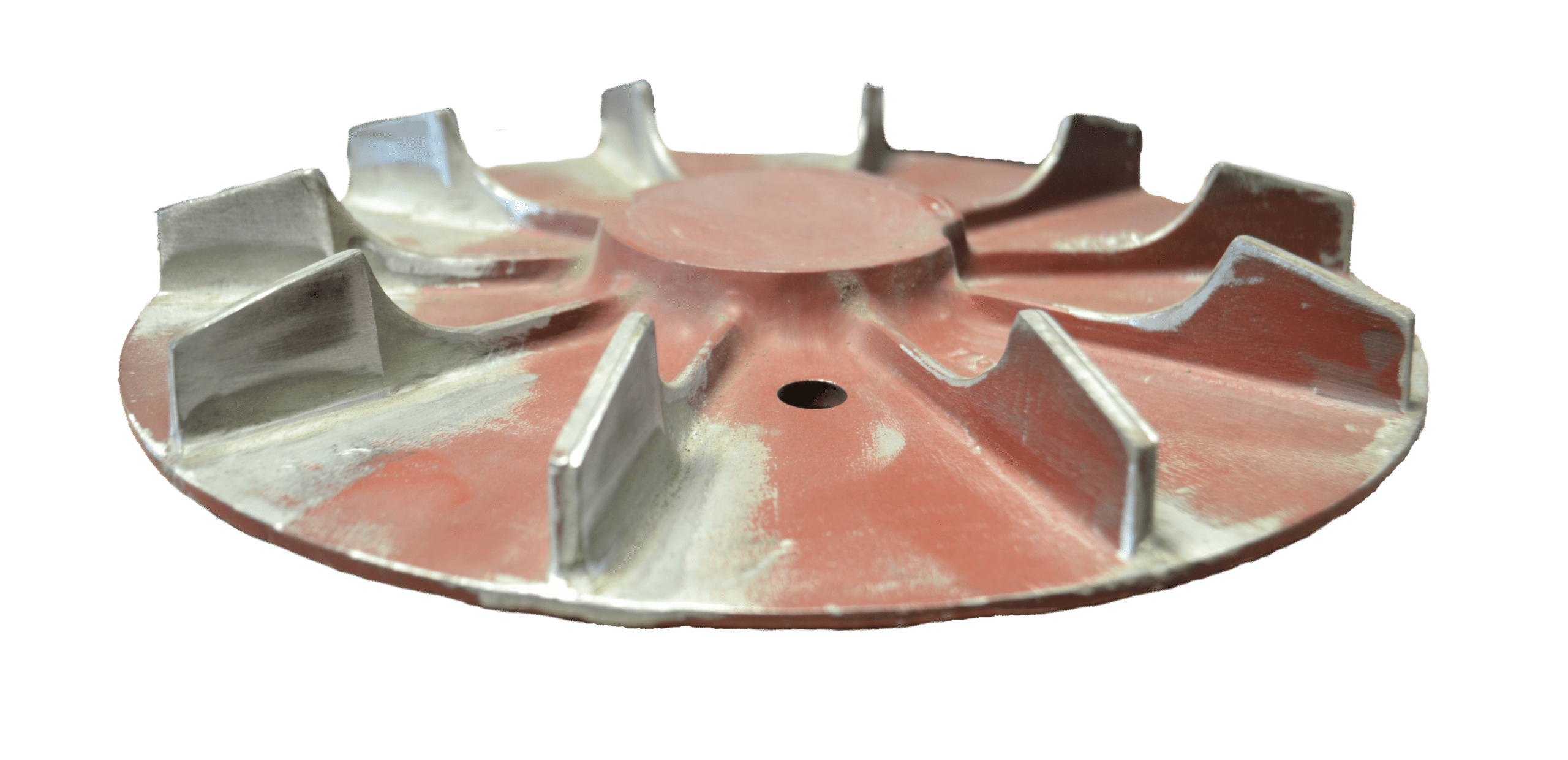

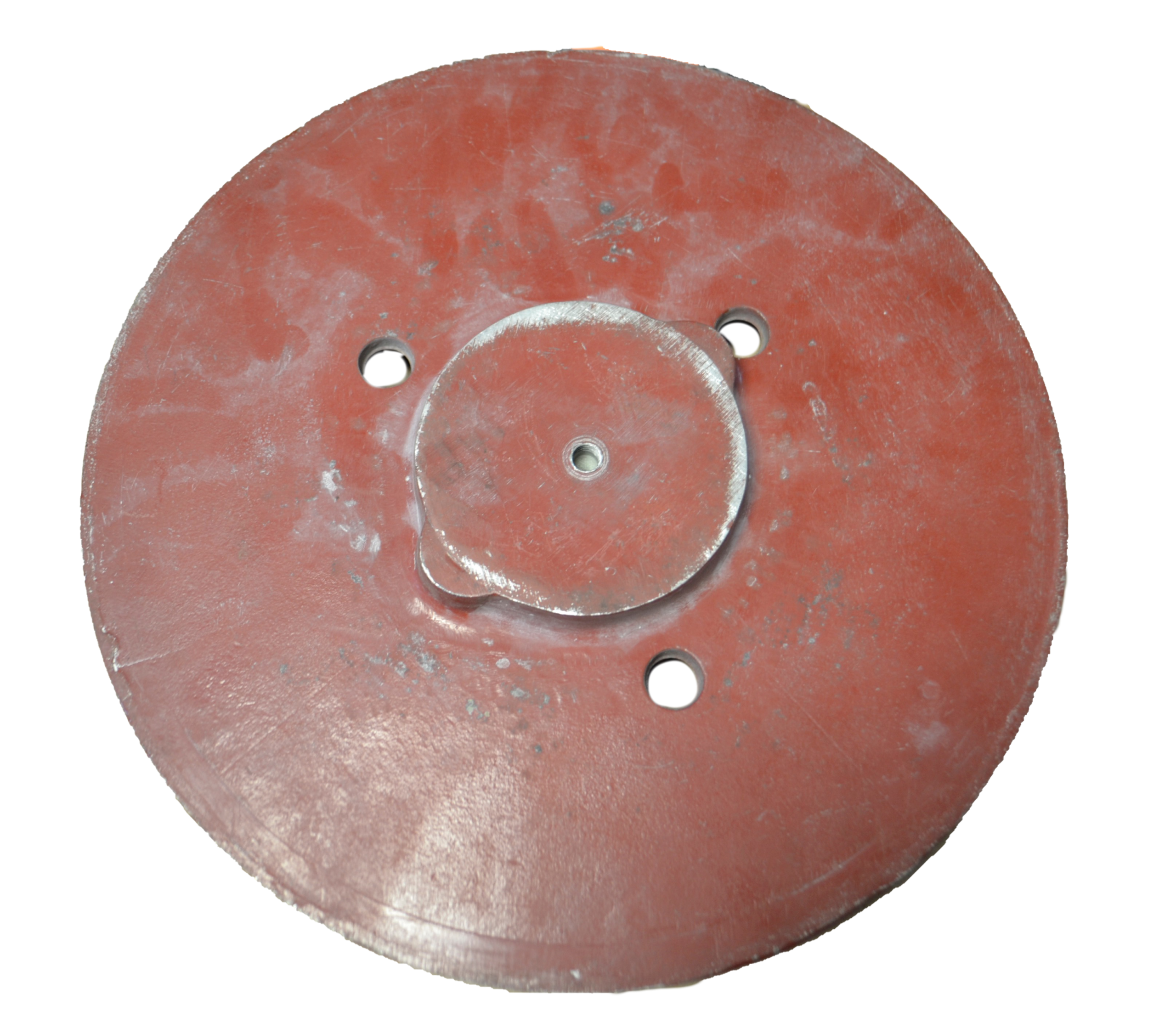

12-5/8″ OD Fan
Series 10 DC/Armature fans are used inside DC motors opposite the commutator end. There’s traditionally a deep recess for the bearing housing with the outside of the hub tapered to fit under the coil ends.
- -0.75” hub recess
- 10 blades
- 3.5625” max bore allowed
$633.46
Overview
Cast in aluminum, this Series 10 12-5/8″ DC/Armature Fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. A rim can be cast around the tips of the blades, as well. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions or rim casting request if desired.
Specs
Series 10 fans are used inside a DC motor opposite the commutator end. Air is drawn across the armature and blown out of the motor. There is usually a deep recess for the bearing housing, and the outside of the hub is tapered to fit under the coil ends.
- Blade Height (A) - in.
- 1.625
- Hub Diameter (B) - in.
- 4.0625
- Hub Thickness (C) - in.
- 1.4375
- Overall Diameter (D) - in.
- 12.625
- Hub Recess (E) - in.
- -0.75
- Plate Diameter (H) - in.
- 12
- Max Bore Allowed - in.
- 3.5625
- Number of Blades
- 10
- Material
- Aluminum
- Weight - lbs
- 7.5
