Part #
1-7827M

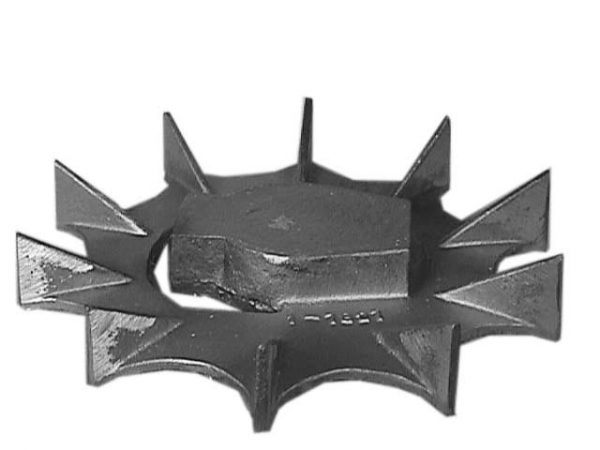

10-1/4″ OD Fan
Our recommended Jenkins OEM replacement fan has been cast in aluminum and machined to match original specifications.
- replaces Baldor Motors B-12FN3000M02, B-09FN3001B03
- 10-1/4″ overall diameter
- 10 blades
$332.70
Specs
- Hub Recess (E) - in.
- Replaces OEM Fan
- B-12FN3000M02, B-09FN3001B03
- Blade Height (A) - in.
- 1.875
- Hub Diameter (B) - in.
- 3.125
- Hub Thickness (C) - in.
- 1.375
- Overall Diameter (D) - in.
- 10.25
- Plate Diameter (H) - in.
- 7.75
- Bore Diameter - mm.
- 50.8762
- Bore Diameter - in.
- 2.003"
- Keyway Size - in.
- 5/16" x 7/32"
- Number of Blades
- 10
- Material
- Aluminum
- Typical Frame
- 320T
- Weight - lbs
- 3
- Balance Included
- No
