Reliance Motors OEM Replacement Fans

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Bore Diameter

Plate Diameter

Direction

Material

Part # 1-6025MD

5-3/4″ OD Fan
$377.98

×

Hub Recess (E) - in.
0.1875
Replaces OEM Fan
R-674-D
Blade Height (A) - in.
1.5625
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
5.75
Plate Diameter (H) - in.
4.4375
Bore Diameter - mm.
50.8
Bore Diameter - in.
2.00"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.3
Balance Included
No
Part # 9-7759M

5-3/4″ OD Fan
$371.53

×

Hub Recess (E) - in.
0.125
Replaces OEM Fan
R-327-10A
Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
5.75
Plate Diameter (H) - in.
1.625
Bore Diameter - mm.
15.9004
Bore Diameter - in.
0.626"
Keyway Size - in.
3/16" x 3/32"
Number of Blades
12
Material
Aluminum
Weight - lbs
0.65
Balance Included
No
Part # 1-5075MA

7-1/2″ OD Fan
$406.64

×

Hub Recess (E) - in.
0.375
Replaces OEM Fan
R-546-A
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
7.5
Plate Diameter (H) - in.
4.75
Bore Diameter - mm.
28.575
Bore Diameter - in.
1.125"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1
Balance Included
No
Part # 1-5075ME

7-1/2″ OD Fan
$406.64

×

Hub Recess (E) - in.
0.375
Replaces OEM Fan
R-546-E
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
7.5
Plate Diameter (H) - in.
4.75
Bore Diameter - mm.
15.875
Bore Diameter - in.
0.625"
Keyway Size - in.
1/4" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1
Balance Included
No
Part # 1-5075MF

7-1/2″ OD Fan
$406.64

×

Hub Recess (E) - in.
0.375
Replaces OEM Fan
R-546-F
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
7.5
Plate Diameter (H) - in.
4.75
Bore Diameter - mm.
22.225
Bore Diameter - in.
0.875"
Keyway Size - in.
1/4" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1
Balance Included
No
Part # 1-5075MG

7-1/2″ OD Fan
$406.64

×

Hub Recess (E) - in.
0.375
Replaces OEM Fan
R-546-G
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
7.5
Plate Diameter (H) - in.
4.75
Bore Diameter - mm.
23.8125
Bore Diameter - in.
0.9375"
Keyway Size - in.
1/4" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1
Balance Included
No
Part # 1-5075MM

7-1/2″ OD Fan
$406.64

×

Hub Recess (E) - in.
0.375
Replaces OEM Fan
R-546-M
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
7.5
Plate Diameter (H) - in.
4.75
Bore Diameter - mm.
29.36748
Bore Diameter - in.
1.1562"
Keyway Size - in.
5/16" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1
Balance Included
No
Part # 1-6028MA

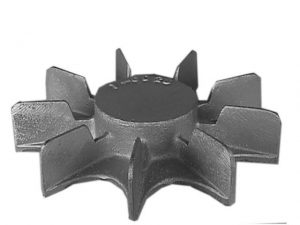

7-5/8″ OD Fan
$432.13

×

Hub Recess (E) - in.
0.1875
Replaces OEM Fan
R-675-1A
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
7.625
Plate Diameter (H) - in.
4.8125
Bore Diameter - mm.
41.275
Bore Diameter - in.
1.625"
Keyway Size - in.
3/8" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.6
Balance Included
No
Need something Custom? We can make it in the foundry.
Learn More
Part # 1-6028MB

7-5/8″ OD Fan
$432.13

×

Hub Recess (E) - in.
0.1875
Replaces OEM Fan
R-675-1B
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
7.625
Plate Diameter (H) - in.
4.8125
Bore Diameter - mm.
44.45
Bore Diameter - in.
1.75"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.6
Balance Included
No
Part # 1-6028MC

7-5/8″ OD Fan
$432.13

×

Hub Recess (E) - in.
0.1875
Replaces OEM Fan
R-675-1C
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
7.625
Plate Diameter (H) - in.
4.8125
Bore Diameter - mm.
47.625
Bore Diameter - in.
1.875"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.6
Balance Included
No
Part # 1-6028MD

7-5/8″ OD Fan
$432.13

×

Hub Recess (E) - in.
0.1875
Replaces OEM Fan
702675-1D
Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
7.625
Plate Diameter (H) - in.
4.8125
Bore Diameter - mm.
50.8
Bore Diameter - in.
2.00"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.6
Balance Included
No
Part # 1-1MXX

7″ OD Fan
$343.70

×

Hub Recess (E) - in.
0.5
Replaces OEM Fan
U-526324, U-360240, R-440-A
Blade Height (A) - in.
1.25
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
7
Plate Diameter (H) - in.
4.875
Bore Diameter - mm.
22.225
Bore Diameter - in.
0.875"
Number of Blades
12
Material
Aluminum
Weight - lbs
1.05
Balance Included
No
Part # 3-63MRS

8-1/2″ OD Fan
$488.48

×

Hub Recess (E) - in.
0
Replaces OEM Fan
R-442-RS
Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
8.5
Plate Diameter (H) - in.
7.8125
Bore Diameter - mm.
44.45
Bore Diameter - in.
1.750"
Keyway Size - in.
5/16" x 5/32"
Number of Blades
15
Material
Aluminum
Weight - lbs
2.45
Balance Included
No
Part # 1-2M(A)

8-1/2″ OD Fan
$344.02

×

Hub Recess (E) - in.
0.5625
Replaces OEM Fan
R-441-A
Blade Height (A) - in.
1.25
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
8.5
Plate Diameter (H) - in.
5.375
Bore Diameter - mm.
22.225
Bore Diameter - in.
0.875"
Number of Blades
12
Material
Aluminum
Weight - lbs
1.2
Balance Included
No
Part # 1-6030M

8-7/8″ OD Fan
$440.85

×

Hub Recess (E) - in.
0.3125
Replaces OEM Fan
R-676-A
Blade Height (A) - in.
1.8125
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.875
Plate Diameter (H) - in.
4.9375
Bore Diameter - mm.
41.275
Bore Diameter - in.
1.625"
Keyway Size - in.
3/8" x 3/16"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.7
Balance Included
No
Part # 1-6030MB

8-7/8″ OD Fan
$440.85

×

Hub Recess (E) - in.
0.3125
Replaces OEM Fan
R-676-B
Blade Height (A) - in.
1.8125
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.875
Plate Diameter (H) - in.
4.9375
Bore Diameter - mm.
44.45
Bore Diameter - in.
1.75"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.7
Balance Included
No
Part # 1-6030MC

8-7/8″ OD Fan
$440.85

×

Hub Recess (E) - in.
0.3125
Replaces OEM Fan
R-676-C
Blade Height (A) - in.
1.8125
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.875
Plate Diameter (H) - in.
4.9375
Bore Diameter - mm.
47.8282
Bore Diameter - in.
1.883"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.7
Balance Included
No
Part # 1-6030MD

8-7/8″ OD Fan
$440.85

×

Hub Recess (E) - in.
0.3125
Replaces OEM Fan
R-676-D
Blade Height (A) - in.
1.8125
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.875
Plate Diameter (H) - in.
4.9375
Bore Diameter - mm.
50.8
Bore Diameter - in.
2.00"
Keyway Size - in.
1/4" x 1/8"
Number of Blades
9
Material
Aluminum
Weight - lbs
1.7
Balance Included
No
Part # 3-63MA

9-1/2″ OD Fan
$378.02

×

Hub Recess (E) - in.
0
Replaces OEM Fan
R-442-A
Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
9.5
Plate Diameter (H) - in.
7.8125
Bore Diameter - mm.
22.225
Bore Diameter - in.
0.875"
Keyway Size - in.
5/16" x 5/32"
Number of Blades
15
Material
Aluminum
Weight - lbs
2.45
Balance Included
No

Need something Custom? We can make it in the foundry.
