Series 8 - Directional Axial

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 8-3413

25-1/8″ OD Fan
$706.95

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.25
Hub Diameter (B) - in.
1.125
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
25.125
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
1.25
Max Bore Allowed - in.
0.625
Number of Blades
2
Material
Aluminum
Weight - lbs
3.45
Part # 8-4970

25″ OD Fan
$471.05

×

Direction of Rotation
CW
Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
1.75
Max Bore Allowed - in.
1.25
Number of Blades
2
Material
Aluminum
Weight - lbs
2.65

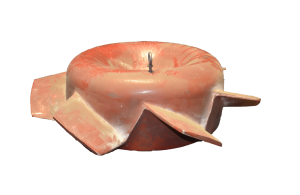

Part # 8-8370

25″ OD Fan
$5,654.90

×

Direction of Rotation
CW
Blade Height (A) - in.
5.5
Hub Diameter (B) - in.
3.9375
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
25
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
17.1875
Max Bore Allowed - in.
3.4375
Number of Blades
7
Material
Aluminum
Weight - lbs
50
Part # 8-3027

25″ OD Fan
$497.62

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
25
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
3
Max Bore Allowed - in.
1.25
Number of Blades
2
Material
Aluminum
Weight - lbs
2.25
Part # 8-4625

26-1/2″ OD Fan
$467.58

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.5625
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
1.8125
Overall Diameter (D) - in.
26.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
1.5625
Max Bore Allowed - in.
0.5
Number of Blades
2
Material
Aluminum
Weight - lbs
2.35
Part # 8-5226

26-1/8″ OD Fan
$6,292.94

×

Direction of Rotation
CW
Blade Height (A) - in.
9.125
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
4.375
Overall Diameter (D) - in.
26.125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
17.75
Max Bore Allowed - in.
5.25
Number of Blades
6
Material
Aluminum
Weight - lbs
48

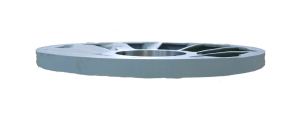

Part # 8-9941

27-1/4″ OD Fan
$4,250.72

×

Direction of Rotation
CW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
12.125
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
27.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
27.25
Max Bore Allowed - in.
11.125
Number of Blades
10
Material
Aluminum
Weight - lbs
37

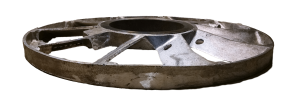

Part # 8-9942

27-1/4″ OD Fan
$4,250.72

×

Direction of Rotation
CCW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
11.875
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
27.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
27.25
Max Bore Allowed - in.
10.875
Number of Blades
10
Material
Aluminum
Weight - lbs
37
Need something Custom? We can make it in the foundry.
Learn More
Part # 8-4902

27-3/4″ OD Fan
$2,007.73

×

Direction of Rotation
CW
Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
27.75
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
11.125
Max Bore Allowed - in.
2.875
Number of Blades
13
Material
Aluminum
Weight - lbs
16.8
Part # 8-6589

29-1/4″ OD Fan
$9,186.29

×

Direction of Rotation
CW
Blade Height (A) - in.
9.75
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
3.5
Overall Diameter (D) - in.
29.25
Hub Recess (E) - in.
0.6875
Plate Diameter (H) - in.
18.125
Max Bore Allowed - in.
5
Number of Blades
7
Material
Aluminum
Weight - lbs
70
Part # 8-8217

3-3/4″ OD Fan
$159.03

×

Direction of Rotation
CW
Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
3.75
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
1
Max Bore Allowed - in.
0.5
Number of Blades
4
Material
Aluminum
Weight - lbs
1
Part # 8-4635

30-3/4″ OD Fan
$1,133.69

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
2.875
Overall Diameter (D) - in.
30.75
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
2.5
Max Bore Allowed - in.
2
Number of Blades
3
Material
Aluminum
Weight - lbs
4.35
Part # 8-4712

31-1/4″ OD Fan
$2,847.77

×

Direction of Rotation
CCW
Blade Height (A) - in.
9
Hub Diameter (B) - in.
3.25
Hub Thickness (C) - in.
3.875
Overall Diameter (D) - in.
31.25
Hub Recess (E) - in.
1.875
Plate Diameter (H) - in.
10
Max Bore Allowed - in.
2.75
Number of Blades
6
Material
Aluminum
Weight - lbs
22.7
Part # 8-8916

31″ OD Fan
$8,179.96

×

Direction of Rotation
CW
Blade Height (A) - in.
7
Hub Diameter (B) - in.
6.375
Hub Thickness (C) - in.
4
Overall Diameter (D) - in.
31
Hub Recess (E) - in.
0.6875
Plate Diameter (H) - in.
17.8125
Max Bore Allowed - in.
5.875
Number of Blades
9
Material
Aluminum
Weight - lbs
65

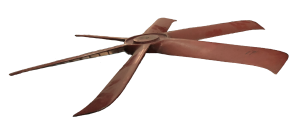

Part # 8-8917

32″ OD Fan
$1,021.11

×

Direction of Rotation
CCW
Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
3.1875
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
32
Hub Recess (E) - in.
-0.125
Plate Diameter (H) - in.
5.5
Max Bore Allowed - in.
2.6875
Number of Blades
6
Material
Aluminum
Weight - lbs
9
Part # 8-8267

33-1/4″ OD Fan
$2,265.16

×

Direction of Rotation
CCW
Blade Height (A) - in.
7.125
Hub Diameter (B) - in.
5.625
Hub Thickness (C) - in.
2.875
Overall Diameter (D) - in.
33.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.625
Max Bore Allowed - in.
5.125
Number of Blades
3
Material
Aluminum
Weight - lbs
18

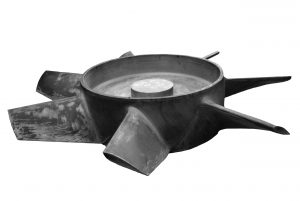

Part # 8-4704

35-1/2″ OD Fan
$7,012.27

×

Direction of Rotation
CW
Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
4.5
Overall Diameter (D) - in.
35.5
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
18.625
Max Bore Allowed - in.
5
Number of Blades
7
Material
Aluminum
Weight - lbs
62
Part # 8-6405

35-3/4″ OD Fan
$1,247.75

×

Direction of Rotation
CW
Blade Height (A) - in.
4.8125
Hub Diameter (B) - in.
3.75
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
35.75
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
9.375
Max Bore Allowed - in.
3.25
Number of Blades
4
Material
Aluminum
Weight - lbs
11

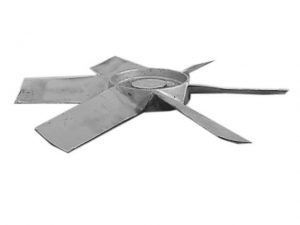

Part # 8-4718

35″ OD Fan
$2,744.31

×

Direction of Rotation
CW
Blade Height (A) - in.
4.625
Hub Diameter (B) - in.
4.375
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
35
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
10
Max Bore Allowed - in.
3.875
Number of Blades
6
Material
Aluminum
Weight - lbs
22.5

Need something Custom? We can make it in the foundry.
