Series 8 - Directional Axial

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

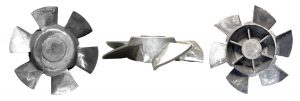

Part # 8-132

22-3/4″ OD Fan
$3,310.91

×

Direction of Rotation
CCW
Blade Height (A) - in.
8
Hub Diameter (B) - in.
5.1875
Hub Thickness (C) - in.
4.125
Overall Diameter (D) - in.
22.75
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
12.75
Max Bore Allowed - in.
4.75
Number of Blades
6
Material
Aluminum
Weight - lbs
26.95
Part # 8-5751

22-3/8″ OD Fan
$945.49

×

Direction of Rotation
CW
Blade Height (A) - in.
5.75
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
22.375
Hub Recess (E) - in.
0.625
Plate Diameter (H) - in.
3.875
Max Bore Allowed - in.
1.25
Number of Blades
4
Material
Aluminum
Weight - lbs
5.15

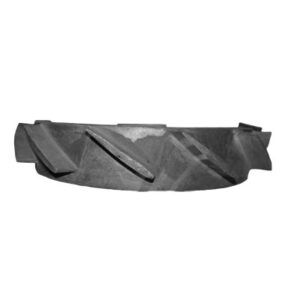

Part # 8-1210

22-7/8″ OD Fan
$4,405.92

×

Blade Height (A) - in.
5.125
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
22.875
Hub Recess (E) - in.
-0.1875
Plate Diameter (H) - in.
19.8125
Max Bore Allowed - in.
4.25
Number of Blades
12
Material
Aluminum
Weight - lbs
36.5
Part # 8-4281

22″ OD Fan
$2,706.12

×

Direction of Rotation
CW
Blade Height (A) - in.
8
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
4
Overall Diameter (D) - in.
22
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
13.25
Max Bore Allowed - in.
5
Number of Blades
6
Material
Aluminum
Weight - lbs
24
Part # 8-468

22″ OD Fan
$4,311.08

×

Direction of Rotation
CW
Blade Height (A) - in.
6.5
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
22
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
16.5
Max Bore Allowed - in.
4.375
Number of Blades
9
Material
Aluminum
Weight - lbs
34.25
Part # 8-4851

23-1/4″ OD Fan
$5,916.03

×

Direction of Rotation
CCW
Blade Height (A) - in.
6.5
Hub Diameter (B) - in.
4.125
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
23.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
17.25
Max Bore Allowed - in.
3.5
Number of Blades
11
Material
Aluminum
Weight - lbs
47

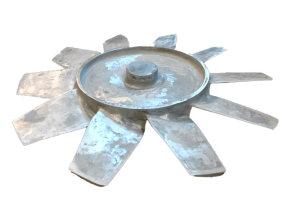

Part # 8-9066

23-1/8″ OD Fan
$2,040.99

×

Direction of Rotation
CW
Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
2.9375
Overall Diameter (D) - in.
23.125
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
11.75
Max Bore Allowed - in.
2.375
Number of Blades
10
Material
Aluminum
Weight - lbs
18

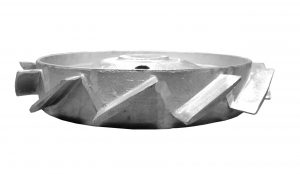

Part # 8-2145

23-3/4″ OD Fan
$3,808.53

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.125
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
23.75
Hub Recess (E) - in.
-1.0625
Plate Diameter (H) - in.
20
Max Bore Allowed - in.
4.25
Number of Blades
12
Material
Aluminum
Weight - lbs
30.2
Need something Custom? We can make it in the foundry.
Learn More
Part # 8-4908

23-5/8″ OD Fan
$2,888.42

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.75
Hub Diameter (B) - in.
5.4375
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
23.625
Hub Recess (E) - in.
3.125
Plate Diameter (H) - in.
11.125
Max Bore Allowed - in.
4.9375
Number of Blades
9
Material
Aluminum
Weight - lbs
22.9
Part # 8-5048

23-5/8″ OD Fan
$1,344.45

×

Direction of Rotation
CCW
Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
5.125
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
23.625
Hub Recess (E) - in.
-0.125
Plate Diameter (H) - in.
5.125
Max Bore Allowed - in.
4
Number of Blades
6
Material
Aluminum
Weight - lbs
5.35

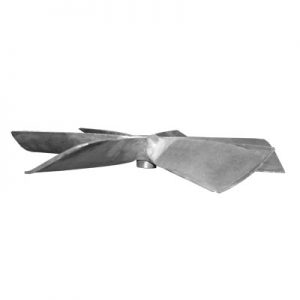

Part # 8-2077

23-7/16″ OD Fan
$1,217.93

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.75
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
23.4375
Hub Recess (E) - in.
-0.5
Plate Diameter (H) - in.
3.5
Max Bore Allowed - in.
1.5
Number of Blades
6
Material
Aluminum
Weight - lbs
9
Part # 8-7799

23-7/8″ OD Fan
$2,345.23

×

Direction of Rotation
CW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
12.125
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
23.875
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
12.125
Max Bore Allowed - in.
11.5
Number of Blades
8
Material
Aluminum
Weight - lbs
19

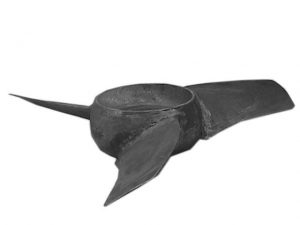

Part # 8-5753

24-1/4″ OD Fan
$1,424.32

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.625
Hub Diameter (B) - in.
6.375
Hub Thickness (C) - in.
0.5625
Overall Diameter (D) - in.
24.25
Hub Recess (E) - in.
1.375
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
5.875
Number of Blades
3
Material
Aluminum
Weight - lbs
8.5

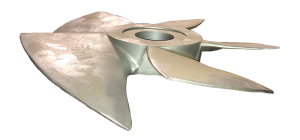

Part # 8-6525

24-1/4″ OD Fan
$3,147.09

×

Direction of Rotation
CW
Blade Height (A) - in.
13
Hub Diameter (B) - in.
6.375
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
24.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
9.5625
Max Bore Allowed - in.
5
Number of Blades
5
Material
Aluminum
Weight - lbs
25
Part # 8-7798

24-1/4″ OD Fan
$2,345.23

×

Direction of Rotation
CCW
Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
12.25
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
24.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
12.25
Max Bore Allowed - in.
11.5
Number of Blades
8
Material
Aluminum
Weight - lbs
19

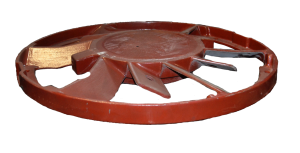

Part # 8-6529

24-1/8″ OD Fan
$2,770.17

×

Direction of Rotation
CW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
10.75
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
24.125
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
24.125
Max Bore Allowed - in.
10.25
Number of Blades
10
Material
Aluminum
Weight - lbs
22
Part # 8-6530

24-1/8″ OD Fan
$2,770.17

×

Direction of Rotation
CCW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
10.75
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
24.125
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
24.125
Max Bore Allowed - in.
10.25
Number of Blades
10
Material
Aluminum
Weight - lbs
22

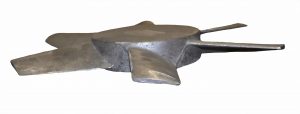

Part # 8-7256

24″ OD Fan
$2,794.81

×

Direction of Rotation
CW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
9.875
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
24
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
9.875
Max Bore Allowed - in.
9.375
Number of Blades
6
Material
Aluminum
Weight - lbs
22.2

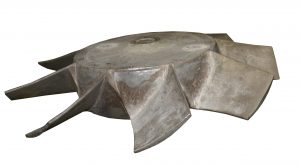

Part # 8-6585

25-1/2″ OD Fan
$4,669.51

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.375
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
25.5
Hub Recess (E) - in.
3.375
Plate Diameter (H) - in.
13.75
Max Bore Allowed - in.
2.625
Number of Blades
9
Material
Aluminum
Weight - lbs
37.05

Need something Custom? We can make it in the foundry.
