Series 8 - Directional Axial

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 8-8376

19-5/16″ OD Fan
$2,272.55

×

Direction of Rotation
CW

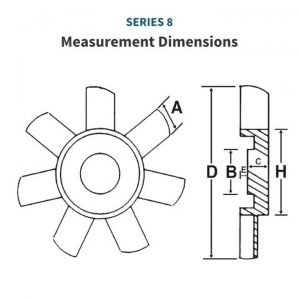

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
13.5
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
19.3125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
15.375
Max Bore Allowed - in.
12.5
Number of Blades
21
Material
Aluminum
Weight - lbs
18.1
Part # 8-7777

19-5/8″ OD Fan
$3,650.87

×

Direction of Rotation
CW
Blade Height (A) - in.
9.875
Hub Diameter (B) - in.
7.9375
Hub Thickness (C) - in.
5
Overall Diameter (D) - in.
19.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
7.9375
Max Bore Allowed - in.
7.25
Number of Blades
3
Material
Aluminum
Weight - lbs
28.2

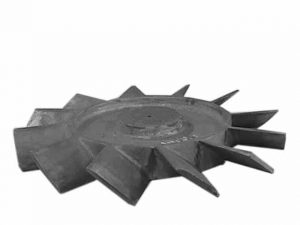

Part # 8-9601

19-5/8″ OD Fan
$2,310.74

×

Direction of Rotation
CW
Blade Height (A) - in.
3.625
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
19.625
Hub Recess (E) - in.
-0.1875
Plate Diameter (H) - in.
11.75
Max Bore Allowed - in.
4.375
Number of Blades
12
Material
Aluminum
Weight - lbs
17.5

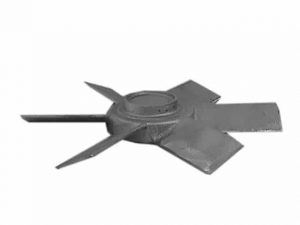

Part # 8-6665

20-1/2″ OD Fan
$1,221.88

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.4375
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
20.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
3.75
Number of Blades
6
Material
Aluminum
Weight - lbs
10.05

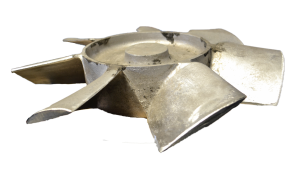

Part # 8-4932

20-3/16″ OD Fan
$1,894.41

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.5
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
20.1875
Hub Recess (E) - in.
1.75
Plate Diameter (H) - in.
10.0625
Max Bore Allowed - in.
3
Number of Blades
7
Material
Aluminum
Weight - lbs
15.15

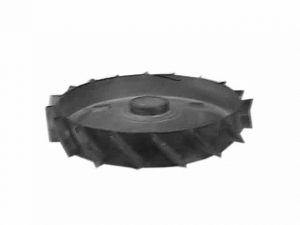

Part # 8-7754

20-3/4″ OD Fan
$2,831.76

×

Direction of Rotation
CW
Blade Height (A) - in.
4
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
20.75
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
18.625
Max Bore Allowed - in.
3.5
Number of Blades
18
Material
Aluminum
Weight - lbs
23
Part # 8-8910

20-5/8″ OD Fan
$995.24

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
7.375
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
20.625
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
8.25
Max Bore Allowed - in.
6.875
Number of Blades
6
Material
Aluminum
Weight - lbs
7.9
Part # 8-8911

20-5/8″ OD Fan
$964.45

×

Direction of Rotation
CW
Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
7.125
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
20.625
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
8.25
Max Bore Allowed - in.
6.625
Number of Blades
6
Material
Aluminum
Weight - lbs
7.65
Need something Custom? We can make it in the foundry.
Learn More

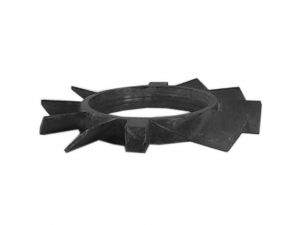

Part # 8-2136

20″ OD Fan
$1,321.65

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.625
Hub Diameter (B) - in.
12.25
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
20
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
12.25
Max Bore Allowed - in.
11.5
Number of Blades
8
Material
Aluminum
Weight - lbs
10.5

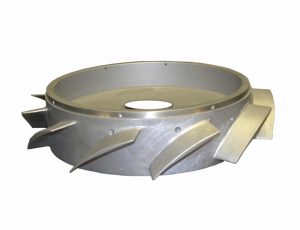

Part # 8-9013

21-1/16″ OD Fan
$4,865.36

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.625
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
21.0625
Hub Recess (E) - in.
2.1875
Plate Diameter (H) - in.
17.125
Max Bore Allowed - in.
3.5
Number of Blades
12
Material
Aluminum
Weight - lbs
39.7
Part # 8-4780

21-1/2″ OD Fan
$5,285.38

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.875
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
21.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
17.0625
Max Bore Allowed - in.
4.5
Number of Blades
12
Material
Aluminum
Weight - lbs
39
Part # 8-9477

21-1/2″ OD Fan
$4,782.83

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.5
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
3.1875
Overall Diameter (D) - in.
21.5
Hub Recess (E) - in.
1.9375
Plate Diameter (H) - in.
17.125
Max Bore Allowed - in.
4
Number of Blades
12
Material
Aluminum
Weight - lbs
38
Part # 8-449

21-1/8″ OD Fan
$4,208.84

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.25
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
3.75
Overall Diameter (D) - in.
21.125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
17
Max Bore Allowed - in.
3
Number of Blades
12
Material
Aluminum
Weight - lbs
33.85
Part # 8-152

21″ OD Fan
$5,790.39

×

Direction of Rotation
CCW
Blade Height (A) - in.
5.5
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
2.25
Plate Diameter (H) - in.
17
Max Bore Allowed - in.
3.25
Number of Blades
12
Material
Aluminum
Weight - lbs
48
Part # 8-6597

21″ OD Fan
$4,657.19

×

Direction of Rotation
CW
Blade Height (A) - in.
7.875
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
15.625
Max Bore Allowed - in.
3
Number of Blades
7
Material
Aluminum
Weight - lbs
37

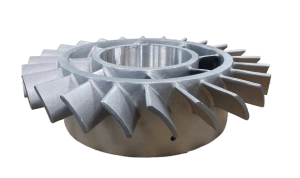

Part # 8-7037

21″ OD Fan
$3,825.77

×

Direction of Rotation
CW
Blade Height (A) - in.
2.375
Hub Diameter (B) - in.
9.625
Hub Thickness (C) - in.
5.75
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
15.25
Max Bore Allowed - in.
9
Number of Blades
24
Material
Aluminum
Weight - lbs
30

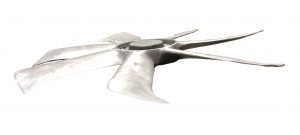

Part # 8-9497

21″ OD Fan
$755.05

×

Direction of Rotation
CW
Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
5.5
Max Bore Allowed - in.
1.375
Number of Blades
7
Material
Aluminum
Weight - lbs
5

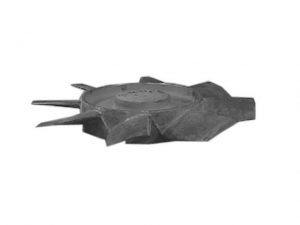

Part # 8-4633

22-1/2″ OD Fan
$3,100.28

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
22.5
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
12.1875
Max Bore Allowed - in.
5
Number of Blades
8
Material
Aluminum
Weight - lbs
25.6
Part # 8-4914

22-1/8″ OD Fan
$930.77

×

Direction of Rotation
CW
Blade Height (A) - in.
4.75
Hub Diameter (B) - in.
1.25
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
22.125
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
4.75
Max Bore Allowed - in.
0.75
Number of Blades
4
Material
Aluminum
Weight - lbs
4.25

Need something Custom? We can make it in the foundry.
