Series 8 - Directional Axial

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

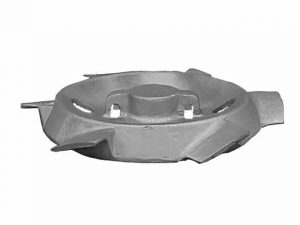

Part # 8-6852

17-1/4″ OD Fan
$1,434.97

×

Direction of Rotation
CCW
Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
17.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
14.75
Max Bore Allowed - in.
3
Number of Blades
6
Material
Aluminum
Weight - lbs
11.4
Part # 8-9468

17-1/4″ OD Fan
$2,517.67

×

Direction of Rotation
CW
Blade Height (A) - in.
7.5
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
17.25
Hub Recess (E) - in.
1.75
Plate Diameter (H) - in.
11
Max Bore Allowed - in.
5.75
Number of Blades
5
Material
Aluminum
Weight - lbs
21

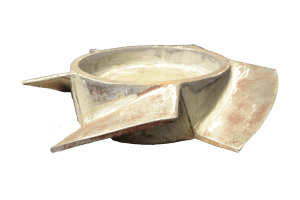

Part # 8-9469

17-1/4″ OD Fan
$2,517.67

×

Direction of Rotation
CCW
Blade Height (A) - in.
7.5
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
17.25
Hub Recess (E) - in.
1.75
Plate Diameter (H) - in.
11
Max Bore Allowed - in.
5.75
Number of Blades
5
Material
Aluminum
Weight - lbs
21

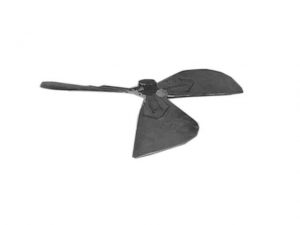

Part # 8-5700

17-3/4″ OD Fan
$876.95

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.625
Hub Diameter (B) - in.
1.375
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
17.75
Hub Recess (E) - in.
0.8125
Plate Diameter (H) - in.
2
Max Bore Allowed - in.
0.875
Number of Blades
3
Material
Aluminum
Weight - lbs
1.55
Part # 8-4760

17-3/8″ OD Fan
$2,529.99

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.625
Hub Diameter (B) - in.
7.75
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
17.375
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
10.375
Max Bore Allowed - in.
7.25
Number of Blades
10
Material
Aluminum
Weight - lbs
20.05

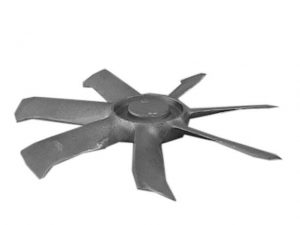

Part # 8-4274

17-5/8″ OD Fan
$478.82

×

Direction of Rotation
CW
Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
17.625
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
4.75
Max Bore Allowed - in.
2
Number of Blades
7
Material
Aluminum
Weight - lbs
3.1
Part # 8-6012

17″ OD Fan
$1,446.06

×

Direction of Rotation
CW
Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
6.875
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
12.875
Max Bore Allowed - in.
6.375
Number of Blades
20
Material
Aluminum
Weight - lbs
9.95

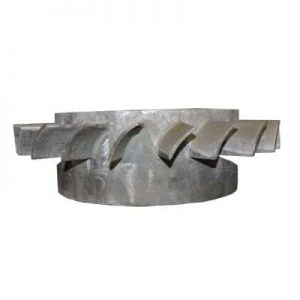

Part # 8-8375

17″ OD Fan
$3,650.87

×

Direction of Rotation
CCW
Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
12
Hub Thickness (C) - in.
5
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
12
Max Bore Allowed - in.
7.75
Number of Blades
21
Material
Aluminum
Weight - lbs
29
Need something Custom? We can make it in the foundry.
Learn More

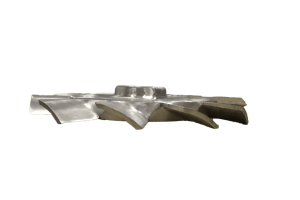

Part # 8-8981

17″ OD Fan
$851.13

×

Direction of Rotation
CW
Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
11.375
Max Bore Allowed - in.
2.375
Number of Blades
12
Material
Aluminum
Weight - lbs
7.5
Part # 8-2800

17″ OD Fan
$1,806.96

×

Direction of Rotation
CW
Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
7.25
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
10
Max Bore Allowed - in.
6.75
Number of Blades
7
Material
Aluminum
Weight - lbs
14

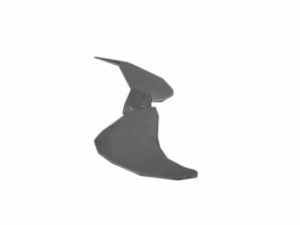

Part # 8-7790

18-1/2″ OD Fan
$341.32

×

Direction of Rotation
CCW
Blade Height (A) - in.
4
Hub Diameter (B) - in.
0.875
Hub Thickness (C) - in.
1.1875
Overall Diameter (D) - in.
18.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
1.5
Max Bore Allowed - in.
0.375
Number of Blades
2
Material
Aluminum
Weight - lbs
1.3
Part # 8-5053

18-1/4″ OD Fan
$2,675.33

×

Direction of Rotation
CW
Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
4.375
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
18.25
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
9
Max Bore Allowed - in.
3.875
Number of Blades
7
Material
Aluminum
Weight - lbs
21.35

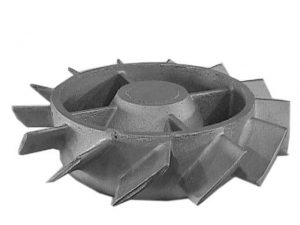

Part # 8-7833

18-5/8″ OD Fan
$4,185.44

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
2.5625
Overall Diameter (D) - in.
18.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
13.625
Max Bore Allowed - in.
4.25
Number of Blades
13
Material
Aluminum
Weight - lbs
33.25

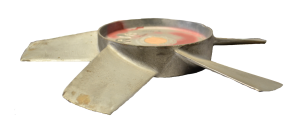

Part # 8-4713

18″ OD Fan
$1,156.26

×

Direction of Rotation
CW
Blade Height (A) - in.
3
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
18
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
8
Max Bore Allowed - in.
2.5
Number of Blades
6
Material
Aluminum
Weight - lbs
5.2

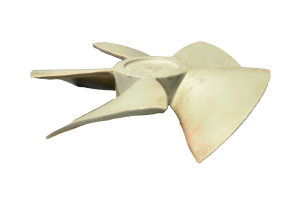

Part # 8-6567

18″ OD Fan
$1,989.25

×

Direction of Rotation
CCW
Blade Height (A) - in.
9.625
Hub Diameter (B) - in.
5.75
Hub Thickness (C) - in.
3.4375
Overall Diameter (D) - in.
18
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.75
Max Bore Allowed - in.
4.375
Number of Blades
5
Material
Aluminum
Weight - lbs
15.8

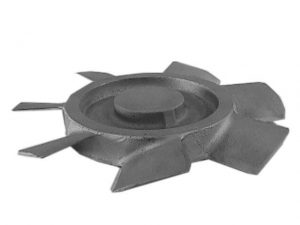

Part # 8-131

19-1/2″ OD Fan
$2,108.73

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
12
Max Bore Allowed - in.
4.25
Number of Blades
7
Material
Aluminum
Weight - lbs
18
Part # 8-4887

19-1/4″ OD Fan
$1,762.61

×

Direction of Rotation
CW
Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
10.25
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
19.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
10.25
Max Bore Allowed - in.
9.5
Number of Blades
8
Material
Aluminum
Weight - lbs
14
Part # 8-7778

19-1/4″ OD Fan
$3,499.36

×

Direction of Rotation
CCW
Blade Height (A) - in.
9.5
Hub Diameter (B) - in.
8
Hub Thickness (C) - in.
5
Overall Diameter (D) - in.
19.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
8
Max Bore Allowed - in.
7.5
Number of Blades
3
Material
Aluminum
Weight - lbs
28

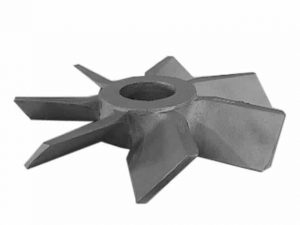

Part # 8-3033

19-11/16″ OD Fan
$2,392.03

×

Direction of Rotation
CCW
Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
7
Hub Thickness (C) - in.
3.25
Overall Diameter (D) - in.
19.6875
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
7
Max Bore Allowed - in.
6.25
Number of Blades
7
Material
Aluminum
Weight - lbs
19

Need something Custom? We can make it in the foundry.
