Series 6 - Deep Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

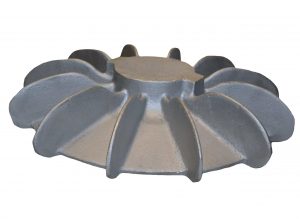

Part # 6-6472

17-1/4″ OD Fan
$1,145.51

×

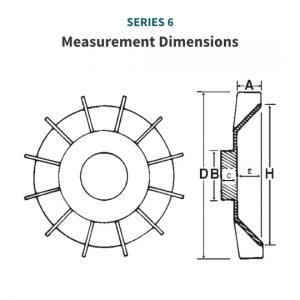

Blade Height (A) - in.
3.375
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2.4375
Overall Diameter (D) - in.
17.25
Hub Recess (E) - in.
1.0625
Plate Diameter (H) - in.
14.25
Max Bore Allowed - in.
4.375
Number of Blades
12
Material
Aluminum
Weight - lbs
13
Part # 6-150

17-1/8″ OD Fan
$704.55

×

Blade Height (A) - in.
2.9375
Hub Diameter (B) - in.
3.875
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
17.125
Hub Recess (E) - in.
1.9375
Plate Diameter (H) - in.
11
Max Bore Allowed - in.
3.375
Number of Blades
14
Material
Aluminum
Weight - lbs
7.4
Part # 6-3026

17-1/8″ OD Fan
$678.69

×

Blade Height (A) - in.
3.25
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
17.125
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
8.875
Max Bore Allowed - in.
3.75
Number of Blades
11
Material
Aluminum
Weight - lbs
7.7

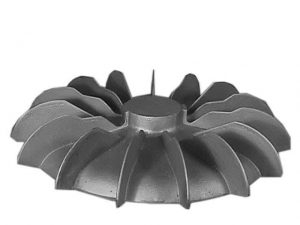

Part # 6-7842

17-3/4″ OD Fan
$596.16

×

Blade Height (A) - in.
3.25
Hub Diameter (B) - in.
3.625
Hub Thickness (C) - in.
1.5625
Overall Diameter (D) - in.
17.75
Hub Recess (E) - in.
1.1875
Plate Diameter (H) - in.
15.25
Max Bore Allowed - in.
3.125
Number of Blades
15
Material
Aluminum
Weight - lbs
7
Part # 6-8377

17-5/8″ OD Fan
$2,113.66

×

Blade Height (A) - in.
7.75
Hub Diameter (B) - in.
5.25
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
17.625
Hub Recess (E) - in.
1.625
Plate Diameter (H) - in.
17.625
Max Bore Allowed - in.
4.75
Number of Blades
5
Material
Aluminum
Weight - lbs
24
Part # 6-6474

17-7/8″ OD Fan
$704.55

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
17.875
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
12.5
Max Bore Allowed - in.
4.25
Number of Blades
13
Material
Aluminum
Weight - lbs
8

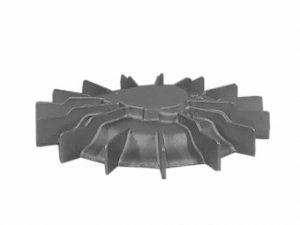

Part # 6-7654

17-7/8″ OD Fan
$1,056.83

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
17.875
Hub Recess (E) - in.
1.625
Plate Diameter (H) - in.
14.625
Max Bore Allowed - in.
5
Number of Blades
15
Material
Aluminum
Weight - lbs
12
Part # 6-6831

18-1/2″ OD Fan
$2,771.41

×

Blade Height (A) - in.
5.125
Hub Diameter (B) - in.
7
Hub Thickness (C) - in.
3.875
Overall Diameter (D) - in.
18.5
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
18.125
Max Bore Allowed - in.
6.5
Number of Blades
9
Material
Aluminum
Weight - lbs
34
Need something Custom? We can make it in the foundry.
Learn More
Part # 6-4742

18-1/8″ OD Fan
$759.98

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
4.1875
Hub Thickness (C) - in.
1.9375
Overall Diameter (D) - in.
18.125
Hub Recess (E) - in.
1.1875
Plate Diameter (H) - in.
13
Max Bore Allowed - in.
3.6875
Number of Blades
9
Material
Aluminum
Weight - lbs
8.6
Part # 6-4623

19-1/2″ OD Fan
$950.90

×

Blade Height (A) - in.
3.625
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
11.75
Max Bore Allowed - in.
4.375
Number of Blades
15
Material
Aluminum
Weight - lbs
10.8

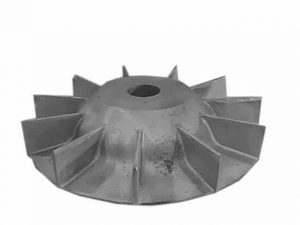

Part # 6-4705

19-1/8″ OD Fan
$923.80

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
7.125
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
19.125
Hub Recess (E) - in.
2.5
Plate Diameter (H) - in.
18.5
Max Bore Allowed - in.
6.625
Number of Blades
11
Material
Aluminum
Weight - lbs
18.3

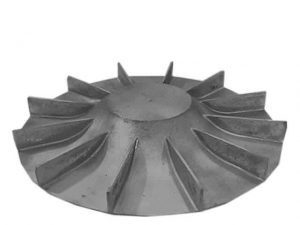

Part # 6-472

19-1/8″ OD Fan
$759.98

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
3.25
Hub Thickness (C) - in.
1.3125
Overall Diameter (D) - in.
19.125
Hub Recess (E) - in.
1.1875
Plate Diameter (H) - in.
19.125
Max Bore Allowed - in.
2.75
Number of Blades
12
Material
Aluminum
Weight - lbs
8.65

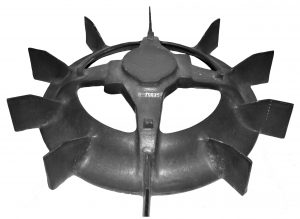

Part # 6-4845

19-1/8″ OD Fan
$1,001.96

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
3.625
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
19.125
Hub Recess (E) - in.
2.0625
Plate Diameter (H) - in.
15.8125
Max Bore Allowed - in.
3.125
Number of Blades
10
Material
Aluminum
Weight - lbs
9.8

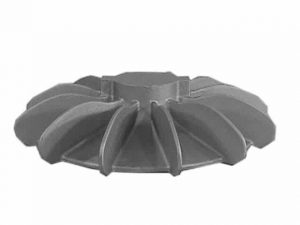

Part # 6-7868

19-13/16″ OD Fan
$1,803.26

×

Blade Height (A) - in.
4.125
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
19.8125
Hub Recess (E) - in.
1.875
Plate Diameter (H) - in.
16.125
Max Bore Allowed - in.
4.5
Number of Blades
12
Material
Aluminum
Typical Frame
500
Weight - lbs
20.5

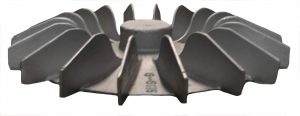

Part # 6-6475

19-7/8″ OD Fan
$1,079.00

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
3.75
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
19.875
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
16.3125
Max Bore Allowed - in.
3.25
Number of Blades
18
Material
Aluminum
Typical Frame
449T
Weight - lbs
12.25
Part # 6-84

2-5/8″ OD Fan
$144.31

×

Blade Height (A) - in.
0.5
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
2.625
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
2.625
Max Bore Allowed - in.
0.5
Number of Blades
12
Material
Aluminum
Weight - lbs
0.1

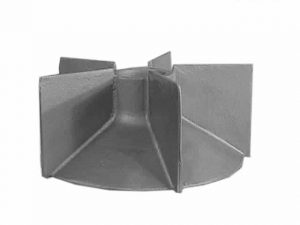

Part # 6-458

20-5/8″ OD Fan
$2,781.26

×

Blade Height (A) - in.
9.125
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
20.625
Hub Recess (E) - in.
2.375
Plate Diameter (H) - in.
19.125
Max Bore Allowed - in.
5
Number of Blades
5
Material
Aluminum
Weight - lbs
31.6

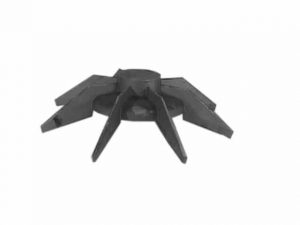

Part # 6-9153

20″ OD Fan
$1,041.89

×

Blade Height (A) - in.
4.75
Hub Diameter (B) - in.
4.5
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
20
Hub Recess (E) - in.
3.125
Plate Diameter (H) - in.
10.375
Max Bore Allowed - in.
4
Number of Blades
8
Material
Aluminum
Weight - lbs
11

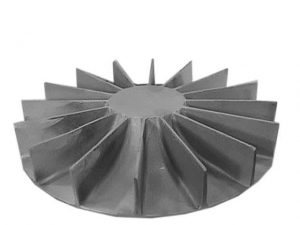

Part # 6-4753

21″ OD Fan
$2,001.57

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
1.625
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
1.625
Plate Diameter (H) - in.
21
Max Bore Allowed - in.
5.5
Number of Blades
16
Material
Aluminum
Weight - lbs
22.75

Need something Custom? We can make it in the foundry.
