Series 6 - Deep Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 6-9486

15-3/4″ OD Fan
$1,038.35

×

Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2.3125
Overall Diameter (D) - in.
15.75
Hub Recess (E) - in.
0.3125
Plate Diameter (H) - in.
15.75
Max Bore Allowed - in.
4.375
Number of Blades
6
Material
Aluminum
Weight - lbs
11.8
Part # 6-4699

15-5/8″ OD Fan
$899.17

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
4.375
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
15.625
Hub Recess (E) - in.
1.125
Plate Diameter (H) - in.
12.875
Max Bore Allowed - in.
3.875
Number of Blades
12
Material
Aluminum
Weight - lbs
10.2
Part # 6-4872

15-5/8″ OD Fan
$743.97

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
15.625
Hub Recess (E) - in.
2
Plate Diameter (H) - in.
13.5
Max Bore Allowed - in.
2.25
Number of Blades
12
Material
Aluminum
Weight - lbs
8.44
Part # 6-8566

15-5/8″ OD Fan
$617.10

×

Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
15.625
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
11.875
Max Bore Allowed - in.
2.875
Number of Blades
14
Material
Aluminum
Typical Frame
360T
Weight - lbs
7

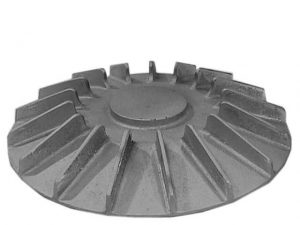

Part # 6-8760

15″ OD Fan
$704.55

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
15
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
15
Max Bore Allowed - in.
3.5
Number of Blades
17
Material
Aluminum
Weight - lbs
8
Part # 6-9218

15″ OD Fan
$374.45

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
15
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
13
Max Bore Allowed - in.
3.5
Number of Blades
13
Material
Aluminum
Typical Frame
320U
Weight - lbs
4.25
Part # 6-4740

16-1/2″ OD Fan
$1,262.53

×

Blade Height (A) - in.
6.1875
Hub Diameter (B) - in.
5.0625
Hub Thickness (C) - in.
1.9375
Overall Diameter (D) - in.
16.5
Hub Recess (E) - in.
3
Plate Diameter (H) - in.
16.5
Max Bore Allowed - in.
4.5625
Number of Blades
6
Material
Aluminum
Typical Frame
440
Weight - lbs
14.35
Part # 6-8960

16-1/2″ OD Fan
$2,728.30

×

Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
16.5
Hub Recess (E) - in.
1.5625
Plate Diameter (H) - in.
16.5
Max Bore Allowed - in.
5
Number of Blades
8
Material
Aluminum
Weight - lbs
31
Need something Custom? We can make it in the foundry.
Learn More
Part # 6-4638

16-1/4″ OD Fan
$551.82

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.625
Overall Diameter (D) - in.
16.25
Hub Recess (E) - in.
1.5
Plate Diameter (H) - in.
9.25
Max Bore Allowed - in.
3.5
Number of Blades
12
Material
Aluminum
Weight - lbs
6.3
Part # 6-9475

16-13/16″ OD Fan
$1,587.71

×

Blade Height (A) - in.
7
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
3.75
Overall Diameter (D) - in.
16.8125
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
16.8125
Max Bore Allowed - in.
3.75
Number of Blades
7
Material
Aluminum
Weight - lbs
18
Part # 6-4289

16-3/4″ OD Fan
$792.01

×

Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
2.8125
Overall Diameter (D) - in.
16.75
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
8.875
Max Bore Allowed - in.
3.75
Number of Blades
11
Material
Aluminum
Typical Frame
444U
Weight - lbs
9

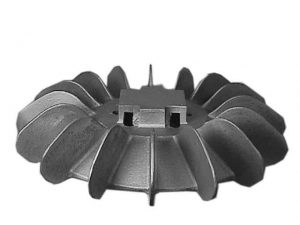

Part # 6-6848

16-3/8″ OD Fan
$672.53

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
16.375
Hub Recess (E) - in.
2
Plate Diameter (H) - in.
13.125
Max Bore Allowed - in.
2.875
Number of Blades
16
Material
Aluminum
Weight - lbs
7.65
Part # 6-8641

16-3/8″ OD Fan
$1,056.83

×

Blade Height (A) - in.
2.375
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
16.375
Hub Recess (E) - in.
-1.5
Plate Diameter (H) - in.
12.5
Max Bore Allowed - in.
4.375
Number of Blades
12
Material
Aluminum
Weight - lbs
12

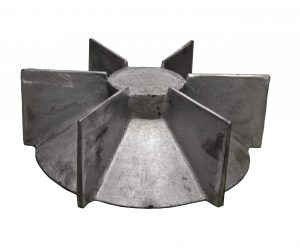

Part # 6-8955

16-3/8″ OD Fan
$2,026.21

×

Blade Height (A) - in.
5.375
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
16.375
Hub Recess (E) - in.
2.375
Plate Diameter (H) - in.
14.75
Max Bore Allowed - in.
4.5
Number of Blades
6
Material
Aluminum
Weight - lbs
23

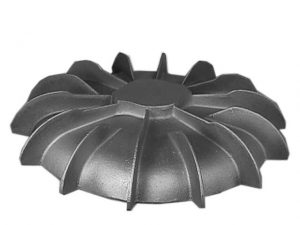

Part # 6-1771

16″ OD Fan
$572.76

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
16
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
13.5
Max Bore Allowed - in.
3
Number of Blades
14
Material
Aluminum
Weight - lbs
6.5
Part # 6-4452

16″ OD Fan
$787.32

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
3.8125
Overall Diameter (D) - in.
16
Hub Recess (E) - in.
-0.5
Plate Diameter (H) - in.
10.375
Max Bore Allowed - in.
3
Number of Blades
14
Material
Aluminum
Typical Frame
405
Weight - lbs
8.63
Part # 6-7848

16″ OD Fan
$540.73

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
16
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
9
Max Bore Allowed - in.
3.5
Number of Blades
11
Material
Aluminum
Weight - lbs
6.15
Part # 6-7964-2

17-1/2″ OD Fan
$1,301.94

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
3.75
Overall Diameter (D) - in.
17.5
Hub Recess (E) - in.
-0.625
Plate Diameter (H) - in.
11.375
Max Bore Allowed - in.
3.75
Number of Blades
18
Material
Aluminum
Weight - lbs
14.8
Part # 6-7964

17-1/2″ OD Fan
$1,301.94

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
17.5
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
11.375
Max Bore Allowed - in.
3.5
Number of Blades
18
Material
Aluminum
Weight - lbs
14.8

Need something Custom? We can make it in the foundry.
