Series 6 - Deep Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 6-4805

9-1/4″ OD Fan
$238.96

×

Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
3.0625
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
9.25
Hub Recess (E) - in.
1.1875
Plate Diameter (H) - in.
9.25
Max Bore Allowed - in.
2.5625
Number of Blades
7
Material
Aluminum
Weight - lbs
2.75
Part # 6-8268

9-1/4″ OD Fan
$317.79

×

Blade Height (A) - in.
3.4375
Hub Diameter (B) - in.
3.3125
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
9.25
Hub Recess (E) - in.
0.5625
Plate Diameter (H) - in.
9.25
Max Bore Allowed - in.
2.8125
Number of Blades
5
Material
Aluminum
Weight - lbs
3.65
Part # 6-17

9-1/8″ OD Fan
$271.40

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
9.125
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
1.5
Number of Blades
7
Material
Aluminum
Typical Frame
132
Weight - lbs
1.45
Part # 6-18

9-1/8″ OD Fan
$255.08

×

Blade Height (A) - in.
2.125
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9.125
Hub Recess (E) - in.
1.125
Plate Diameter (H) - in.
7.25
Max Bore Allowed - in.
1.625
Number of Blades
10
Material
Aluminum
Typical Frame
160S
Weight - lbs
1.8
Part # 6-7796

9-1/8″ OD Fan
$162.50

×

Blade Height (A) - in.
1
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
9.125
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
6.25
Max Bore Allowed - in.
1.625
Number of Blades
11
Material
Aluminum
Weight - lbs
1.15
Part # 6-8337

9-1/8″ OD Fan
$280.91

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
9.125
Hub Recess (E) - in.
0.9375
Plate Diameter (H) - in.
8.25
Max Bore Allowed - in.
3.5
Number of Blades
11
Material
Aluminum
Weight - lbs
1.9
Part # 6-6598

9-13/16″ OD Fan
$545.66

×

Blade Height (A) - in.
5.6875
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
3.625
Overall Diameter (D) - in.
9.8125
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
9.8125
Max Bore Allowed - in.
2.625
Number of Blades
7
Material
Aluminum
Weight - lbs
6.35
Part # 6-4892

9-15/16″ OD Fan
$242.65

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
9.9375
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
9.9375
Max Bore Allowed - in.
2.625
Number of Blades
11
Material
Aluminum
Weight - lbs
2.75
Need something Custom? We can make it in the foundry.
Learn More
Part # 6-2134

9-3/4″ OD Fan
$296.85

×

Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
1.875
Plate Diameter (H) - in.
9.75
Max Bore Allowed - in.
3.75
Number of Blades
12
Material
Aluminum
Weight - lbs
3.35
Part # 6-4

9-3/4″ OD Fan
$215.28

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
1.375
Plate Diameter (H) - in.
7.375
Max Bore Allowed - in.
2.875
Number of Blades
12
Material
Aluminum
Typical Frame
250T
Weight - lbs
3
Part # 6-4963

9-3/4″ OD Fan
$278.37

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
1.9375
Plate Diameter (H) - in.
8.25
Max Bore Allowed - in.
3
Number of Blades
9
Material
Aluminum
Weight - lbs
3.15
Part # 6-7860

9-3/4″ OD Fan
$215.28

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
2
Number of Blades
15
Material
Aluminum
Weight - lbs
2.2
Part # 6-4766

9-3/8″ OD Fan
$215.55

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
1.0625
Overall Diameter (D) - in.
9.375
Hub Recess (E) - in.
1.375
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
2.5
Number of Blades
17
Material
Aluminum
Weight - lbs
3

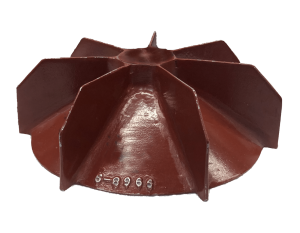

Part # 6-8966

9-3/8″ OD Fan
$221.71

×

Blade Height (A) - in.
3.875"
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
3.25
Overall Diameter (D) - in.
9.375
Hub Recess (E) - in.
0.625
Plate Diameter (H) - in.
8.625
Max Bore Allowed - in.
1.5
Number of Blades
7
Material
Aluminum
Weight - lbs
2.5
Part # 6-37

9-5/16″ OD Fan
$163.41

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
2.375
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
9.3125
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
1.875
Number of Blades
10
Material
Aluminum
Typical Frame
160
Weight - lbs
1.25
Part # 6-452

9-7/8″ OD Fan
$353.51

×

Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
9.5
Max Bore Allowed - in.
3
Number of Blades
5
Material
Aluminum
Weight - lbs
4
Part # 6-6050

9-7/8″ OD Fan
$176.39

×

Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
7.875
Max Bore Allowed - in.
2.25
Number of Blades
5
Material
Aluminum
Typical Frame
250TS
Weight - lbs
1.9
Part # 6-6522-2

9-7/8″ OD Fan
$247.58

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
3.625
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
8.4375
Max Bore Allowed - in.
3.125
Number of Blades
9
Material
Aluminum
Weight - lbs
2.8
Part # 6-9930

9-7/8″ OD Fan
$199.54

×

Blade Height (A) - in.
2.4375
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.4375
Plate Diameter (H) - in.
7.375
Max Bore Allowed - in.
2.875
Number of Blades
6
Material
Aluminum
Weight - lbs
2.25

Need something Custom? We can make it in the foundry.
