Series 10 - DC/Armature

Sort By

woocommerce_catalog_ordering

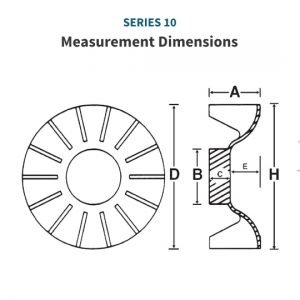

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 10-4714

20″ OD Fan
$2,858.86

×

Blade Height (A) - in.
4.625
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
20
Hub Recess (E) - in.
3
Plate Diameter (H) - in.
20
Max Bore Allowed - in.
5.5
Number of Blades
9
Material
Aluminum
Weight - lbs
32.5
Part # 10-6445

21-1/2″ OD Fan
$1,180.00

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
8.25
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
21.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
21.5
Max Bore Allowed - in.
7.5
Number of Blades
20
Material
Aluminum
Weight - lbs
13.4
Part # 10-8984

21-1/4″ OD Fan
$2,720.90

×

Blade Height (A) - in.
6.625
Hub Diameter (B) - in.
11.75
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
21.25
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
21.25
Max Bore Allowed - in.
11.25
Number of Blades
13
Material
Aluminum
Weight - lbs
45

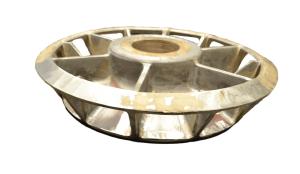

Part # 10-4907

21-3/8″ OD Fan
$2,858.86

×

Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
8.25
Hub Thickness (C) - in.
4.125
Overall Diameter (D) - in.
21.375
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
17
Max Bore Allowed - in.
7.75
Number of Blades
12
Material
Aluminum
Weight - lbs
32.5
Part # 10-6476

21″ OD Fan
$2,199.88

×

Blade Height (A) - in.
4
Hub Diameter (B) - in.
7
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
21
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.5
Max Bore Allowed - in.
6
Number of Blades
12
Material
Aluminum
Weight - lbs
25
Part # 10-5011

22-1/16″ OD Fan
$2,950.01

×

Blade Height (A) - in.
3.625
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
22.0625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
20.375
Max Bore Allowed - in.
3.5
Number of Blades
12
Material
Aluminum
Weight - lbs
33.5
Part # 10-5030

22-1/2″ OD Fan
$2,894.58

×

Blade Height (A) - in.
4.375
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
22.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
20.75
Max Bore Allowed - in.
4
Number of Blades
18
Material
Aluminum
Weight - lbs
33
Part # 10-5436

22-1/2″ OD Fan
$2,411.74

×

Blade Height (A) - in.
5.5
Hub Diameter (B) - in.
4.625
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
22.5
Hub Recess (E) - in.
3.25
Plate Diameter (H) - in.
12.25
Max Bore Allowed - in.
4.125
Number of Blades
17
Material
Aluminum
Weight - lbs
27.4
Need something Custom? We can make it in the foundry.
Learn More
Part # 10-437-2

22-1/4″ OD Fan
$5,454.13

×

Blade Height (A) - in.
3.875"
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
22.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
22.25
Max Bore Allowed - in.
5.75
Number of Blades
16
Material
Aluminum
Typical Frame
B. Ring
Weight - lbs
62
Part # 10-437

22-1/4″ OD Fan
$5,454.13

×

Blade Height (A) - in.
3.875"
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
22.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
22.25
Max Bore Allowed - in.
5.75
Number of Blades
16
Material
Aluminum
Typical Frame
B. Ring
Weight - lbs
62
Part # 10-3694

22-3/4″ OD Fan
$1,439.90

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
12.625
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
22.75
Hub Recess (E) - in.
1.625
Plate Diameter (H) - in.
19.75
Max Bore Allowed - in.
12
Number of Blades
15
Material
Aluminum
Weight - lbs
16.5
Part # 10-710

22-5/8″ OD Fan
$2,376.02

×

Blade Height (A) - in.
4.1875
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
22.625
Hub Recess (E) - in.
2
Plate Diameter (H) - in.
16.5
Max Bore Allowed - in.
5
Number of Blades
22
Material
Aluminum
Typical Frame
680Y
Weight - lbs
24.65

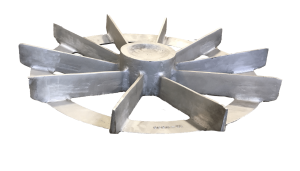

Part # 10-4886

23-5/16″ OD Fan
$1,409.11

×

Blade Height (A) - in.
2.125
Hub Diameter (B) - in.
5.125
Hub Thickness (C) - in.
3.25
Overall Diameter (D) - in.
23.3125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
21.5
Max Bore Allowed - in.
4.625
Number of Blades
10
Material
Aluminum
Weight - lbs
16
Part # 10-6843

24-1/8″ OD Fan
$4,003.14

×

Blade Height (A) - in.
6.75
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
24.125
Hub Recess (E) - in.
5.5
Plate Diameter (H) - in.
15.875
Max Bore Allowed - in.
5.5
Number of Blades
10
Material
Aluminum
Weight - lbs
45.5

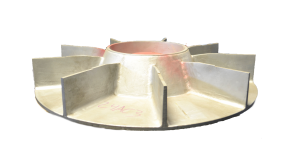

Part # 10-4779

24-1/8″ OD Fan
$3,960.03

×

Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
5.3125
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
24.125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
24.125
Max Bore Allowed - in.
3.75
Number of Blades
9
Material
Aluminum
Weight - lbs
45
Part # 10-9488

24-3/8″ OD Fan
$6,853.38

×

Blade Height (A) - in.
2.9375
Hub Diameter (B) - in.
6.9375
Hub Thickness (C) - in.
2.3125
Overall Diameter (D) - in.
24.375
Hub Recess (E) - in.
3.375
Plate Diameter (H) - in.
24.375
Max Bore Allowed - in.
6.4375
Number of Blades
12
Material
Aluminum
Weight - lbs
69
Part # 10-4743

25-3/4″ OD Fan
$3,431.62

×

Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
15.5
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
25.75
Hub Recess (E) - in.
1.5
Plate Diameter (H) - in.
25.75
Max Bore Allowed - in.
15
Number of Blades
24
Material
Aluminum
Weight - lbs
39
Part # 10-9492

26-1/4″ OD Fan
$5,015.63

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
3.875
Overall Diameter (D) - in.
26.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
20.25
Max Bore Allowed - in.
5.875
Number of Blades
20
Material
Aluminum
Weight - lbs
57
Part # 10-619

26-1/4″ OD Fan
$4,047.48

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
12.125
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
26.25
Hub Recess (E) - in.
3.375
Plate Diameter (H) - in.
26.25
Max Bore Allowed - in.
11.5
Number of Blades
20
Material
Aluminum
Weight - lbs
46

Need something Custom? We can make it in the foundry.
