Series 10 - DC/Armature

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 10-6440

17″ OD Fan
$881.92

×

Blade Height (A) - in.
7.125
Hub Diameter (B) - in.
7.375
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
10.625
Max Bore Allowed - in.
6.875
Number of Blades
6
Material
Aluminum
Weight - lbs
10
Part # 10-2306

18-1/2″ OD Fan
$994.11

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
18.5
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
15
Max Bore Allowed - in.
3
Number of Blades
12
Material
Aluminum
Weight - lbs
8.3
Part # 10-134

18-1/2″ OD Fan
$1,707.19

×

Blade Height (A) - in.
5.4375
Hub Diameter (B) - in.
5.25
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
18.5
Hub Recess (E) - in.
3.375
Plate Diameter (H) - in.
11-15/16"
Max Bore Allowed - in.
4.6875
Number of Blades
18
Material
Aluminum
Weight - lbs
20.4
Part # 10-8949

18-3/4″ OD Fan
$1,411.57

×

Blade Height (A) - in.
3.25
Hub Diameter (B) - in.
7
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
18.75
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
13.25
Max Bore Allowed - in.
6
Number of Blades
12
Material
Aluminum
Weight - lbs
16.6
Part # 10-8381

18-5/8″ OD Fan
$1,847.60

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
7.75
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
18.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
7.75
Max Bore Allowed - in.
7.25
Number of Blades
18
Material
Aluminum
Weight - lbs
21
Part # 10-6587

18-7/8″ OD Fan
$1,342.59

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
6.125
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
18.875
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
14.25
Max Bore Allowed - in.
5.625
Number of Blades
15
Material
Aluminum
Weight - lbs
15.5
Part # 10-6006

18″ OD Fan
$1,320.42

×

Blade Height (A) - in.
3.875"
Hub Diameter (B) - in.
7
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
18
Hub Recess (E) - in.
3.25
Plate Diameter (H) - in.
15.5
Max Bore Allowed - in.
6.5
Number of Blades
13
Material
Aluminum
Typical Frame
GE
Weight - lbs
14.65
Part # 10-6586

18″ OD Fan
$1,790.94

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
3.875
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
18
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
16.625
Max Bore Allowed - in.
3.375
Number of Blades
12
Material
Aluminum
Weight - lbs
20.5
Need something Custom? We can make it in the foundry.
Learn More
Part # 10-9225

19-1/2″ OD Fan
$2,028.67

×

Blade Height (A) - in.
2.375
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
1.25
Plate Diameter (H) - in.
19.5
Max Bore Allowed - in.
5
Number of Blades
24
Material
Aluminum
Weight - lbs
23
Part # 10-3028

19-1/2″ OD Fan
$1,346.29

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
4.625
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
1.375
Plate Diameter (H) - in.
14.75
Max Bore Allowed - in.
4.125
Number of Blades
22
Material
Aluminum
Weight - lbs
15.3
Part # 10-6594

19-3/4″ OD Fan
$2,793.58

×

Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
7.125
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
19.75
Hub Recess (E) - in.
3.125
Plate Diameter (H) - in.
19.75
Max Bore Allowed - in.
6.5
Number of Blades
9
Material
Aluminum
Weight - lbs
31.75
Part # 10-403

19-3/8″ OD Fan
$1,857.46

×

Blade Height (A) - in.
5.25
Hub Diameter (B) - in.
4.875
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
19.375
Hub Recess (E) - in.
4.75
Plate Diameter (H) - in.
12.875
Max Bore Allowed - in.
4.375
Number of Blades
10
Material
Aluminum
Weight - lbs
21.1
Part # 10-4966

19-5/8″ OD Fan
$1,496.56

×

Blade Height (A) - in.
3.875"
Hub Diameter (B) - in.
6.5
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
19.625
Hub Recess (E) - in.
2
Plate Diameter (H) - in.
19.625
Max Bore Allowed - in.
6
Number of Blades
12
Material
Aluminum
Weight - lbs
17

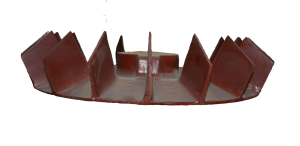

Part # 10-5028

19″ OD Fan
$2,112.43

×

Blade Height (A) - in.
4.125
Hub Diameter (B) - in.
7.375
Hub Thickness (C) - in.
3.625
Overall Diameter (D) - in.
19
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
17.25
Max Bore Allowed - in.
6.875
Number of Blades
18
Material
Aluminum
Weight - lbs
24
Part # 10-5866

19″ OD Fan
$1,113.49

×

Blade Height (A) - in.
2.5
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
19
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
9.875
Max Bore Allowed - in.
3.5
Number of Blades
18
Material
Aluminum
Weight - lbs
12.65
Part # 10-2744

2-15/16″ OD Fan
$146.05

×

Blade Height (A) - in.
1
Hub Diameter (B) - in.
0.9375
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
2.9375
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
2.9375
Max Bore Allowed - in.
0.5
Number of Blades
19
Material
Aluminum
Weight - lbs
0.25

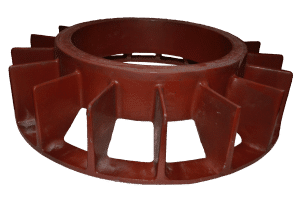

Part # 10-8946

20-1/2″ OD Fan
$2,026.21

×

Blade Height (A) - in.
4.25
Hub Diameter (B) - in.
14.25
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
20.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
20.5
Max Bore Allowed - in.
13.75
Number of Blades
17
Material
Aluminum
Weight - lbs
23
Part # 10-5207

20-1/2″ OD Fan
$1,087.62

×

Blade Height (A) - in.
2.4375
Hub Diameter (B) - in.
7.6875
Hub Thickness (C) - in.
1.5625
Overall Diameter (D) - in.
20.5
Hub Recess (E) - in.
1.3125
Plate Diameter (H) - in.
7.6875
Max Bore Allowed - in.
7.125
Number of Blades
18
Material
Aluminum
Weight - lbs
13.5
Part # 10-4905

20-3/4″ OD Fan
$2,486.88

×

Blade Height (A) - in.
2.125
Hub Diameter (B) - in.
7.25
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
20.75
Hub Recess (E) - in.
4.625
Plate Diameter (H) - in.
18.75
Max Bore Allowed - in.
6.75
Number of Blades
16
Material
Aluminum
Weight - lbs
28.25

Need something Custom? We can make it in the foundry.
