Series 1 - Shallow Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 1-6531

23-5/8″ OD Fan
$3,168.02

×

Blade Height (A) - in.
5.875
Hub Diameter (B) - in.
7.75
Hub Thickness (C) - in.
4
Overall Diameter (D) - in.
23.625
Hub Recess (E) - in.
0.0625
Plate Diameter (H) - in.
23.625
Max Bore Allowed - in.
7.75
Number of Blades
7
Material
Aluminum
Weight - lbs
36
Part # 1-22

24-1/2″ OD Fan
$3,246.34

×

Blade Height (A) - in.
4.5
Hub Diameter (B) - in.
10.5
Hub Thickness (C) - in.
2.75
Overall Diameter (D) - in.
24.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
21.75
Max Bore Allowed - in.
10
Number of Blades
18
Material
Aluminum
Typical Frame
600
Weight - lbs
42.2
Part # 1-390

24-7/8″ OD Fan
$4,377.59

×

Blade Height (A) - in.
5.25
Hub Diameter (B) - in.
11.375
Hub Thickness (C) - in.
5.75
Overall Diameter (D) - in.
24.875
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
17.25
Max Bore Allowed - in.
10.875
Number of Blades
12
Material
Aluminum
Weight - lbs
49.75
Part # 1-6536

24″ OD Fan
$1,935.06

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
6.125
Hub Thickness (C) - in.
3.1875
Overall Diameter (D) - in.
24
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
15.75
Max Bore Allowed - in.
5.625
Number of Blades
12
Material
Aluminum
Weight - lbs
21.85
Part # 1-4921

25-1/4″ OD Fan
$3,554.79

×

Blade Height (A) - in.
6.625
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
3.125
Overall Diameter (D) - in.
25.25
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
17.5
Max Bore Allowed - in.
5.75
Number of Blades
15
Material
Aluminum
Weight - lbs
40
Part # 1-5757

28-1/2″ OD Fan
$2,536.14

×

Blade Height (A) - in.
4.875
Hub Diameter (B) - in.
5.8125
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
28.5
Hub Recess (E) - in.
1.1875
Plate Diameter (H) - in.
16.625
Max Bore Allowed - in.
5.25
Number of Blades
9
Material
Aluminum
Typical Frame
5810L
Weight - lbs
28.8
Part # 1-2890

3-1/2″ OD Fan
$146.88

×

Blade Height (A) - in.
0.75
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
0.375
Overall Diameter (D) - in.
3.5
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
3.5
Max Bore Allowed - in.
0.5
Number of Blades
12
Material
Aluminum
Weight - lbs
0.2
Part # 1-0000

3-1/8″ OD Fan
$89.92

×

Blade Height (A) - in.
0.875
Hub Diameter (B) - in.
1.25
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
3.125
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
2.5
Max Bore Allowed - in.
0.75
Number of Blades
12
Material
Aluminum
Weight - lbs
0.25
Need something Custom? We can make it in the foundry.
Learn More
Part # 1-8315

3-13/16″ OD Fan
$214.24

×

Blade Height (A) - in.
0.6875
Hub Diameter (B) - in.
0.9375
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
3.8125
Hub Recess (E) - in.
0.1875
Plate Diameter (H) - in.
3.0625
Max Bore Allowed - in.
0.5
Number of Blades
10
Material
Aluminum
Typical Frame
AEG
Weight - lbs
0.1

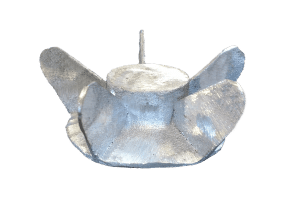

Part # 1-8020

3-3/4″ OD Fan
$150.35

×

Blade Height (A) - in.
1.4375
Hub Diameter (B) - in.
1.375
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
3.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
2.75
Max Bore Allowed - in.
0.875
Number of Blades
5
Material
Aluminum
Weight - lbs
0.2
Part # 1-4956

3-3/4″ OD Fan
$146.05

×

Blade Height (A) - in.
0.875
Hub Diameter (B) - in.
1.25
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
3.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
3.75
Max Bore Allowed - in.
0.75
Number of Blades
11
Material
Aluminum
Weight - lbs
0.25
Part # 1-SW

3-5/8″ OD Fan
$150.35

×

Blade Height (A) - in.
0.5
Hub Diameter (B) - in.
0.75
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
3.625
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
2.875
Max Bore Allowed - in.
0.5
Number of Blades
10
Material
Aluminum
Weight - lbs
0.5
Part # 1-95

3-7/8″ OD Fan
$145.14

×

Blade Height (A) - in.
0.875
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
3.875
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
3
Max Bore Allowed - in.
0.5
Number of Blades
7
Material
Aluminum
Weight - lbs
0.15
Part # 1-2347

3-7/8″ OD Fan
$200.98

×

Blade Height (A) - in.
0.75
Hub Diameter (B) - in.
0.625
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
3.875
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
2.75
Max Bore Allowed - in.
0.125
Number of Blades
12
Material
Aluminum
Weight - lbs
1
Part # 1-6482

32-1/4″ OD Fan
$3,519.07

×

Blade Height (A) - in.
4.75
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
3
Overall Diameter (D) - in.
32.25
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
22
Max Bore Allowed - in.
5
Number of Blades
18
Material
Aluminum
Weight - lbs
40
Part # 1-881

32-1/8″ OD Fan
$4,706.46

×

Blade Height (A) - in.
4.375
Hub Diameter (B) - in.
10.625
Hub Thickness (C) - in.
2.9375
Overall Diameter (D) - in.
32.125
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
22
Max Bore Allowed - in.
10
Number of Blades
18
Material
Aluminum
Typical Frame
8120S
Weight - lbs
50
Part # 1-000

4-1/2″ OD Fan
$89.92

×

Blade Height (A) - in.
0.8125
Hub Diameter (B) - in.
1.6875
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
4.5
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
3.5
Max Bore Allowed - in.
1.1875
Number of Blades
12
Material
Aluminum
Weight - lbs
1
Part # 1-6834

4-1/2″ OD Fan
$143.40

×

Blade Height (A) - in.
0.8125
Hub Diameter (B) - in.
0.875
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
4.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
3.375
Max Bore Allowed - in.
0.375
Number of Blades
12
Material
Aluminum
Typical Frame
180T
Weight - lbs
2
Part # 1-6019

4-1/4″ OD Fan
$144.31

×

Blade Height (A) - in.
0.5625
Hub Diameter (B) - in.
1.3125
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
4.25
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
2.625
Max Bore Allowed - in.
0.8125
Number of Blades
7
Material
Aluminum
Weight - lbs
0.15

Need something Custom? We can make it in the foundry.
