Series 1 - Shallow Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 1-86

17″ OD Fan
$915.18

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
4.25
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
17
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
14.75
Max Bore Allowed - in.
3.5
Number of Blades
12
Material
Aluminum
Weight - lbs
10.4
Part # 1-5097

18-1/2″ OD Fan
$1,760.15

×

Blade Height (A) - in.
5
Hub Diameter (B) - in.
5.5
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
18.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
16.25
Max Bore Allowed - in.
5
Number of Blades
9
Material
Aluminum
Weight - lbs
20
Part # 1-424

18-3/8″ OD Fan
$1,619.73

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
18.375
Hub Recess (E) - in.
0.625
Plate Diameter (H) - in.
18.375
Max Bore Allowed - in.
4.5
Number of Blades
15
Material
Aluminum
Typical Frame
B. Ring
Weight - lbs
18.5
Part # 1-5061

18″ OD Fan
$1,364.76

×

Blade Height (A) - in.
4.125
Hub Diameter (B) - in.
4.75
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
18
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
18
Max Bore Allowed - in.
4.25
Number of Blades
9
Material
Aluminum
Weight - lbs
16
Part # 1-7750

19-1/2″ OD Fan
$551.75

×

Blade Height (A) - in.
2.125
Hub Diameter (B) - in.
4.375
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
14
Max Bore Allowed - in.
3.875
Number of Blades
8
Material
Aluminum
Typical Frame
504V
Weight - lbs
6
Part # 1-7772

19-3/4″ OD Fan
$1,548.29

×

Blade Height (A) - in.
5.25
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
19.75
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
16
Max Bore Allowed - in.
4.5
Number of Blades
18
Material
Aluminum
Typical Frame
445T
Weight - lbs
17.6
Part # 1-7844

19-3/8″ OD Fan
$1,130.73

×

Blade Height (A) - in.
3.375
Hub Diameter (B) - in.
5.125
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
19.375
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
13
Max Bore Allowed - in.
4.625
Number of Blades
15
Material
Aluminum
Typical Frame
449
Weight - lbs
12.85
Part # 1-6075

19-7/8″ OD Fan
$653.36

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
5.875
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
19.875
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
16
Max Bore Allowed - in.
5.375
Number of Blades
12
Material
Aluminum
Typical Frame
445T
Weight - lbs
13.95
Need something Custom? We can make it in the foundry.
Learn More
Part # 1-6434

19-7/8″ OD Fan
$792.01

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.5625
Overall Diameter (D) - in.
19.875
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
14
Max Bore Allowed - in.
3.5
Number of Blades
14
Material
Aluminum
Weight - lbs
9
Part # 1-8558

19-7/8″ OD Fan
$1,056.83

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.8125
Overall Diameter (D) - in.
19.875
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
10.375
Max Bore Allowed - in.
3.5
Number of Blades
17
Material
Aluminum
Typical Frame
445T
Weight - lbs
14

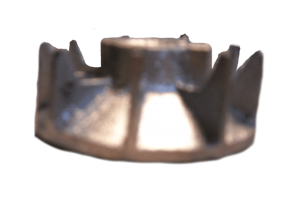

Part # 1-8968

2-1/8″ OD Fan
$142.57

×

Blade Height (A) - in.
0.8125
Hub Diameter (B) - in.
0.875
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
2.125
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
2.125
Max Bore Allowed - in.
0.5
Number of Blades
9
Material
Aluminum
Weight - lbs
0.1
Part # 1-4990

2-3/4″ OD Fan
$150.35

×

Blade Height (A) - in.
0.375
Hub Diameter (B) - in.
1
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
2.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
2.75
Max Bore Allowed - in.
0.5
Number of Blades
7
Material
Aluminum
Weight - lbs
0.15
Part # 1-5058

2″ OD Fan
$142.57

×

Blade Height (A) - in.
0.5
Hub Diameter (B) - in.
0.625
Hub Thickness (C) - in.
0.25
Overall Diameter (D) - in.
2
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
1.625
Max Bore Allowed - in.
0.125
Number of Blades
8
Material
Aluminum
Weight - lbs
0.25
Part # 1-4634

2″ OD Fan
$142.57

×

Blade Height (A) - in.
0.75
Hub Diameter (B) - in.
0.6875
Hub Thickness (C) - in.
0.25
Overall Diameter (D) - in.
2
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
1.625
Max Bore Allowed - in.
0.1875
Number of Blades
8
Material
Aluminum
Weight - lbs
1

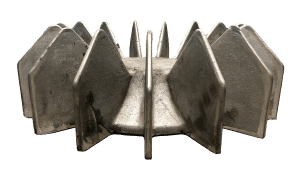

Part # 1-4656

20-1/4″ OD Fan
$2,661.78

×

Blade Height (A) - in.
6.6875
Hub Diameter (B) - in.
6.25
Hub Thickness (C) - in.
3.8125
Overall Diameter (D) - in.
20.25
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
13.375
Max Bore Allowed - in.
5.75
Number of Blades
15
Material
Aluminum
Weight - lbs
38
Part # 1-20

20-5/8″ OD Fan
$1,453.45

×

Blade Height (A) - in.
3.5625
Hub Diameter (B) - in.
6
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
20.625
Hub Recess (E) - in.
-0.0625
Plate Diameter (H) - in.
16.875
Max Bore Allowed - in.
5.5
Number of Blades
16
Material
Aluminum
Typical Frame
500U
Weight - lbs
16.5
Part # 1-2146

21-1/4″ OD Fan
$904.09

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
5.6875
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
21.25
Hub Recess (E) - in.
1
Plate Diameter (H) - in.
13.75
Max Bore Allowed - in.
5.125
Number of Blades
9
Material
Aluminum
Weight - lbs
10.25
Part # 1-4457

22-1/2″ OD Fan
$1,409.11

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
7.375
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
22.5
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
16
Max Bore Allowed - in.
6.875
Number of Blades
9
Material
Aluminum
Typical Frame
5811L
Weight - lbs
15.6
Part # 1-6528

23-1/8″ OD Fan
$1,875.93

×

Blade Height (A) - in.
4.6875
Hub Diameter (B) - in.
6.9375
Hub Thickness (C) - in.
2.125
Overall Diameter (D) - in.
23.125
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
16.375
Max Bore Allowed - in.
6.25
Number of Blades
12
Material
Aluminum
Weight - lbs
21.3
