Series 1 - Shallow Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 1-50

9-1/2″ OD Fan
$273.45

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
5
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.5
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
8.75
Max Bore Allowed - in.
4.5
Number of Blades
9
Material
Aluminum
Typical Frame
360TS
Weight - lbs
3.1

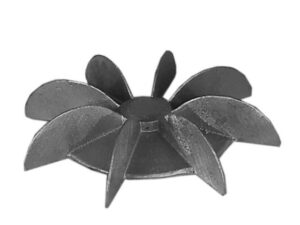

Part # 1-153

9-1/4″ OD Fan
$127.99

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.125
Max Bore Allowed - in.
1.25
Number of Blades
8
Material
Aluminum
Weight - lbs
1.25
Part # 1-4695

9-1/4″ OD Fan
$161.67

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
1.6875
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9.25
Hub Recess (E) - in.
0.0625
Plate Diameter (H) - in.
8
Max Bore Allowed - in.
1.1875
Number of Blades
12
Material
Aluminum
Weight - lbs
1
Part # 1-8940

9-11/16″ OD Fan
$289.31

×

Blade Height (A) - in.
3.105
Hub Diameter (B) - in.
3.815
Hub Thickness (C) - in.
1.64
Overall Diameter (D) - in.
9.64
Hub Recess (E) - in.
0.16
Plate Diameter (H) - in.
8.465
Max Bore Allowed - in.
3.3125
Number of Blades
6
Material
Aluminum
Typical Frame
440
Weight - lbs
3.2
Part # 1-4288

9-13/16″ OD Fan
$243.75

×

Blade Height (A) - in.
2.3125
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
0.6875
Overall Diameter (D) - in.
9.8125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.4375
Max Bore Allowed - in.
2.25
Number of Blades
12
Material
Aluminum
Weight - lbs
1.75
Part # 1-5060

9-13/16″ OD Fan
$388.62

×

Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1.1875
Overall Diameter (D) - in.
9.8125
Hub Recess (E) - in.
0.3125
Plate Diameter (H) - in.
4.875
Max Bore Allowed - in.
2.25
Number of Blades
14
Material
Aluminum
Typical Frame
GE
Weight - lbs
2.25
Part # 1-65

9-3/4″ OD Fan
$209.24

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
8
Max Bore Allowed - in.
1.5
Number of Blades
15
Material
Aluminum
Typical Frame
250T
Weight - lbs
2
Part # 1-3

9-3/4″ OD Fan
$288.76

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
3.5625
Hub Thickness (C) - in.
1.5625
Overall Diameter (D) - in.
9.75
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
6.5625
Max Bore Allowed - in.
3
Number of Blades
12
Material
Aluminum
Typical Frame
250T
Weight - lbs
2.5
Need something Custom? We can make it in the foundry.
Learn More
Part # 1-7775

9-5/16″ OD Fan
$212.72

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.3125
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
6.8125
Max Bore Allowed - in.
1.5
Number of Blades
12
Material
Aluminum
Typical Frame
250T
Weight - lbs
2
Part # 1-370

9-5/8″ OD Fan
$182.30

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
2.25
Hub Thickness (C) - in.
1.625
Overall Diameter (D) - in.
9.625
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
6.375
Max Bore Allowed - in.
1.75
Number of Blades
12
Material
Aluminum
Weight - lbs
2

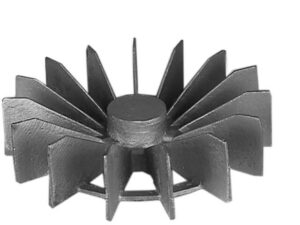

Part # 1-396

9-5/8″ OD Fan
$316.32

×

Blade Height (A) - in.
2.375
Hub Diameter (B) - in.
2.1875
Hub Thickness (C) - in.
1.1875
Overall Diameter (D) - in.
9.625
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
3.5625
Max Bore Allowed - in.
1.625
Number of Blades
15
Material
Aluminum
Weight - lbs
1.9
Part # 1-8587

9-5/8″ OD Fan
$170.35

×

Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
9.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.25
Max Bore Allowed - in.
1.5
Number of Blades
8
Material
Aluminum
Typical Frame
Leroy S.
Weight - lbs
2
Part # 1-4814

9-7/8″ OD Fan
$185.99

×

Blade Height (A) - in.
1.6875
Hub Diameter (B) - in.
1.9375
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.5625
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
1.4375
Number of Blades
12
Material
Aluminum
Weight - lbs
2.1
Part # 1-4944

9-7/8″ OD Fan
$305.47

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
1.4375
Hub Thickness (C) - in.
1.3125
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
9.875
Max Bore Allowed - in.
0.9375
Number of Blades
12
Material
Aluminum
Weight - lbs
3
Part # 1-6571

9-7/8″ OD Fan
$241.19

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
2.5
Number of Blades
8
Material
Aluminum
Weight - lbs
1.65
Part # 1-710

9-7/8″ OD Fan
$480.38

×

Blade Height (A) - in.
3.75
Hub Diameter (B) - in.
4
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
9.875
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
3.5
Number of Blades
12
Material
Aluminum
Typical Frame
400TS
Weight - lbs
5.45
Part # 1-5195

9″ OD Fan
$154.73

×

Blade Height (A) - in.
0.75
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
1.4375
Overall Diameter (D) - in.
9
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
1.25
Number of Blades
7
Material
Aluminum
Weight - lbs
0.85
Part # 1-61

9″ OD Fan
$265.28

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
9
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6.125
Max Bore Allowed - in.
1.125
Number of Blades
13
Material
Aluminum
Typical Frame
250T
Weight - lbs
1.05
Part # 1-7035

9″ OD Fan
$212.72

×

Blade Height (A) - in.
2.125
Hub Diameter (B) - in.
3.375
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
9
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
6.125
Max Bore Allowed - in.
2.875
Number of Blades
12
Material
Aluminum
Weight - lbs
2.05

Need something Custom? We can make it in the foundry.
