Series 1 - Shallow Recess

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

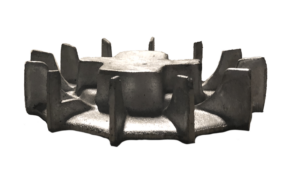

Part # 1-33S-7

7″ OD Fan
$167.71

×

Blade Height (A) - in.
1.5625
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
7
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
6.25
Max Bore Allowed - in.
1.625
Number of Blades
12
Material
Aluminum
Weight - lbs
1.5
Part # 1-4478

8-1/16″ OD Fan
$159.94

×

Blade Height (A) - in.
1.375
Hub Diameter (B) - in.
1.375
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
8.0625
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
6.375
Max Bore Allowed - in.
0.875
Number of Blades
12
Material
Aluminum
Weight - lbs
1
Part # 1-2

8-1/2″ OD Fan
$127.09

×

Blade Height (A) - in.
1.25
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
8.5
Hub Recess (E) - in.
0.5625
Plate Diameter (H) - in.
5.375
Max Bore Allowed - in.
2
Number of Blades
12
Material
Aluminum
Typical Frame
210T
Weight - lbs
1.2

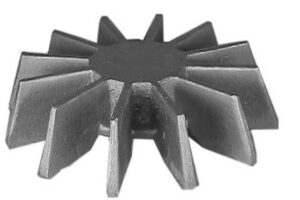

Part # 1-3166

8-1/2″ OD Fan
$251.27

×

Blade Height (A) - in.
2.25
Hub Diameter (B) - in.
2.9375
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
8.5
Hub Recess (E) - in.
0.4375
Plate Diameter (H) - in.
4.125
Max Bore Allowed - in.
2.4375
Number of Blades
12
Material
Aluminum
Weight - lbs
3
Part # 1-6560

8-1/2″ OD Fan
$215.28

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
2
Overall Diameter (D) - in.
8.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
6
Max Bore Allowed - in.
2.25
Number of Blades
12
Material
Aluminum
Weight - lbs
2.4
Part # 1-79

8-1/2″ OD Fan
$193.62

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
1.875
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
8.5
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
6
Max Bore Allowed - in.
1.375
Number of Blades
7
Material
Aluminum
Typical Frame
210T
Weight - lbs
0.9
Part # 1-953

8-1/2″ OD Fan
$202.30

×

Blade Height (A) - in.
1.375
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
8.5
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
7.125
Max Bore Allowed - in.
1.125
Number of Blades
8
Material
Aluminum
Weight - lbs
1.5
Part # 1-8344

8-1/4″ OD Fan
$228.32

×

Blade Height (A) - in.
1.25
Hub Diameter (B) - in.
1.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.25
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
6.375
Max Bore Allowed - in.
1.375
Number of Blades
7
Material
Aluminum
Weight - lbs
1.4
Need something Custom? We can make it in the foundry.
Learn More
Part # 1-4734-S

8-1/4″ OD Fan
$231.60

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
8.25
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
6.125
Max Bore Allowed - in.
1.625
Number of Blades
9
Material
Aluminum
Typical Frame
210T
Weight - lbs
2
Part # 1-75

8-1/4″ OD Fan
$161.67

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
2.875
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
8.25
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
6.375
Max Bore Allowed - in.
2.375
Number of Blades
12
Material
Aluminum
Typical Frame
210T
Weight - lbs
1.15
Part # 1-2280

8-1/8″ OD Fan
$197.92

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
8.125
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
6.375
Max Bore Allowed - in.
1.5
Number of Blades
12
Material
Aluminum
Weight - lbs
2
Part # 1-4676

8-1/8″ OD Fan
$156.46

×

Blade Height (A) - in.
1
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
8.125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.875
Max Bore Allowed - in.
1.125
Number of Blades
13
Material
Aluminum
Weight - lbs
0.85
Part # 1-8898

8-1/8″ OD Fan
$290.69

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
3.4375
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
8.125
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
7.25
Max Bore Allowed - in.
2.875
Number of Blades
9
Material
Aluminum
Weight - lbs
3.3
Part # 1-5073

8-13/16″ OD Fan
$209.69

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
2.375
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
8.8125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
4.5625
Max Bore Allowed - in.
1.875
Number of Blades
11
Material
Aluminum
Weight - lbs
1.1
Part # 1-4854

8-3/16″ OD Fan
$150.35

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
2.0625
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
8.1875
Hub Recess (E) - in.
0.4375
Plate Diameter (H) - in.
6.6875
Max Bore Allowed - in.
1.5625
Number of Blades
9
Material
Aluminum
Weight - lbs
1.14

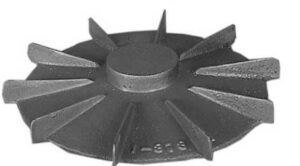

Part # 1-373

8-3/16″ OD Fan
$155.23

×

Blade Height (A) - in.
0.8125
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
8.1875
Hub Recess (E) - in.
0.1875
Plate Diameter (H) - in.
7.25
Max Bore Allowed - in.
1.5625
Number of Blades
10
Material
Aluminum
Weight - lbs
0.75
Part # 1-13

8-3/4″ OD Fan
$226.11

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
8.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
6.5
Max Bore Allowed - in.
2
Number of Blades
12
Material
Aluminum
Typical Frame
210T
Weight - lbs
1.55
Part # 1-6009

8-3/4″ OD Fan
$350.00

×

Blade Height (A) - in.
1.625
Hub Diameter (B) - in.
2.375
Hub Thickness (C) - in.
1.25
Overall Diameter (D) - in.
8.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
7.375
Max Bore Allowed - in.
1.875
Number of Blades
12
Material
Aluminum
Weight - lbs
1.3
Part # 1-6029

8-3/4″ OD Fan
$249.87

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
1.5
Overall Diameter (D) - in.
8.75
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
7
Max Bore Allowed - in.
2.5
Number of Blades
18
Material
Aluminum
Weight - lbs
2.2

Need something Custom? We can make it in the foundry.
